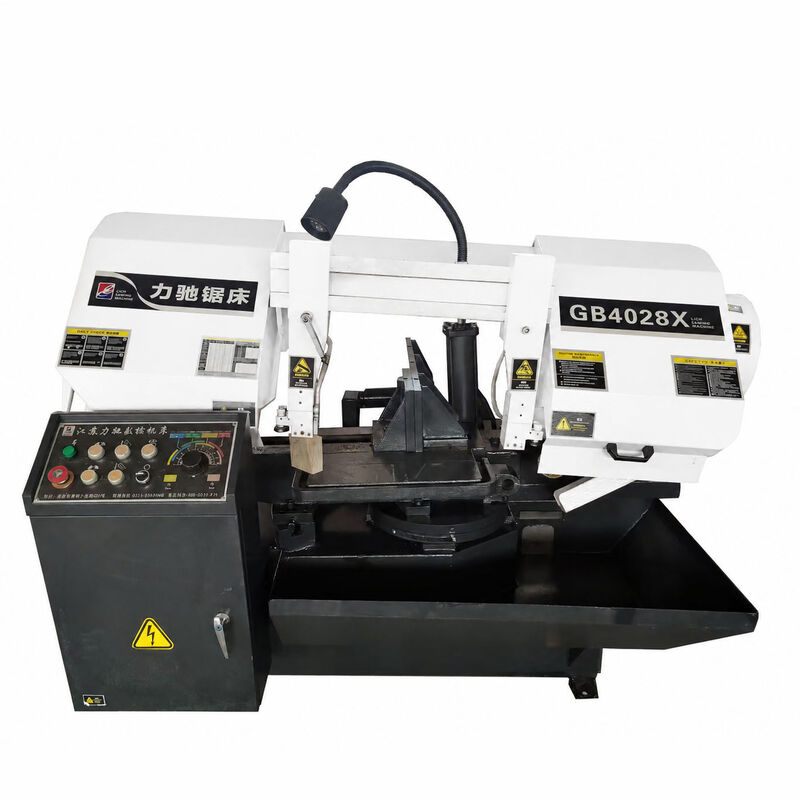

The GB4028X Hydraulic 45 Degree Miter Horizontal Band Saw Machine is a professional metal cutting solution designed for precision angle cutting of steel pipes, bars, profiles, and various industrial metal materials. With a manually adjustable cutting angle from 0° to 45°, this miter band saw provides flexible cutting performance for different production requirements.
Equipped with hydraulic feed control, automatic sawing operation, adjustable blade speed, and a rigid cast iron machine structure, the GB4028X delivers stable cutting accuracy, reduced material waste, and improved production efficiency. The machine is widely used in metal fabrication workshops, machinery manufacturing plants, steel processing industries, and maintenance departments requiring reliable and efficient cutting equipment.
The machine adopts a worm gear transmission system to drive the saw blade rotation, allowing different cutting speeds through pulley adjustment to meet various material cutting requirements.
Key Features
1. Adjustable 45 Degree Miter Cutting
The cutting head can rotate between 0° and 45°, allowing operators to complete different angle cutting tasks without additional equipment. This improves production flexibility and reduces processing steps.
2. Heavy-Duty Cast Machine Structure
The machine bed adopts a casting structure designed to support the column, saw frame, hydraulic system, and other functional components, ensuring stable operation during heavy-duty cutting.
3. Stable Blade Drive System
The worm gear transmission system provides reliable power transmission. The saw blade runs between the driving wheel and driven wheel to achieve stable cutting movement.
4. Adjustable Blade Guide System
The blade guide device includes left and right guide arms with guide rollers and blocks, helping maintain blade stability during cutting operations.
5. Efficient Hydraulic Clamping System
The hydraulic vise system controls workpiece clamping and releasing through the operation panel, improving operation convenience and cutting stability.
Technical Specifications
| Model |
Unit |
GB4028X |
| Machine size |
mm |
1000*1800*1200 |
| Square bar&angle bar |
mm |
45°160*280 |
| Saw band speed |
m/min |
25,35,45,60 |
| Saw band size |
|
3505*27*0.9 |
| Main motor power |
kw |
2.2 |
| Hydraulic motor power |
kw |
0.55 |
| Cooling motor power |
kw |
0.4 |
| Hydraulic fluid capacity |
L |
35 |
| Cutting fluid capacity |
L |
40 |
| Saw band tension |
|
Manual |
| Clamping method |
|
Manual |
| Feeding method |
|
Manual |
Application
The GB4028X 45 Degree Miter Horizontal Band Saw Machine is widely used in:
Steel Fabrication Industry
For cutting structural steel, beams, channels, and metal profiles.
Pipe Processing Industry
Suitable for cutting steel pipes, stainless steel tubes, and industrial pipelines.
Machinery Manufacturing
Used for preparing metal components before welding, machining, and assembly.
Automotive and Equipment Manufacturing
Ideal for cutting precision metal parts requiring angle processing.
Maintenance Workshops
Provides flexible cutting solutions for repair and customized fabrication projects.
FAQ
Q1:What is your factory acceptance test method?
A:You can send sample material for test cutting. We will provide detailed cutting data and a video of the machine operation for your confirmation.
Q2:How about your delivery time?
A:Standard delivery is 7-60 work days after order confirmation, depending on items and quantity.
Q3:Are you a manufacturer or a trading company?
A:We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated team of technicians specializing in design, manufacturing, and sales.
Q5: Can this band saw machine cut different angles?
A:Yes. The GB4028X supports adjustable angle cutting from 0° to 45°, making it suitable for different miter cutting requirements.
Q5: What is the maximum cutting capacity?
A:The maximum cutting height is 280 mm. The maximum cutting width is 280 mm at 90° cutting and 150 mm at 45° cutting.
