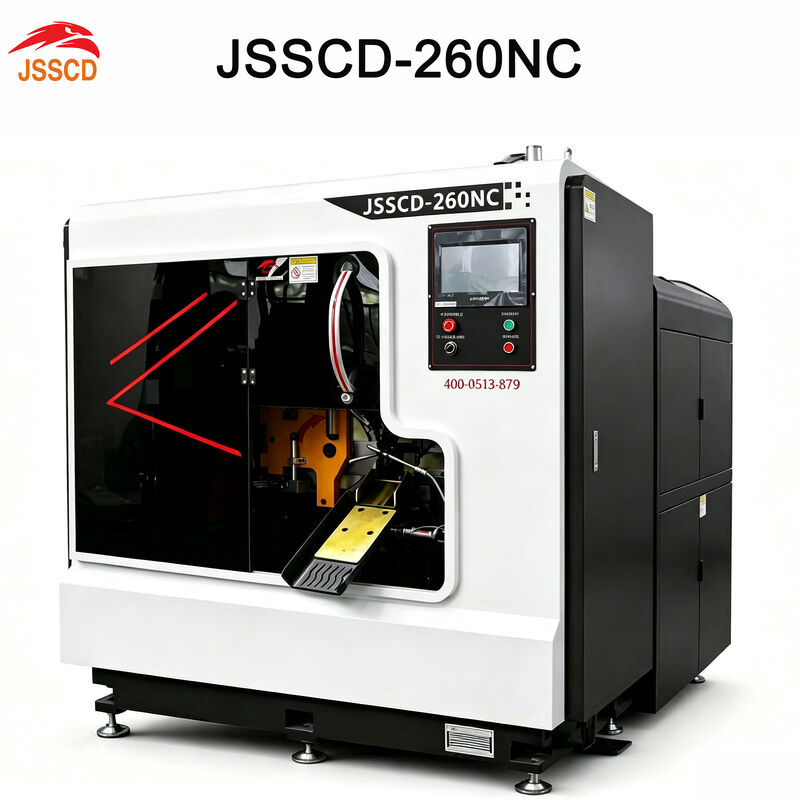

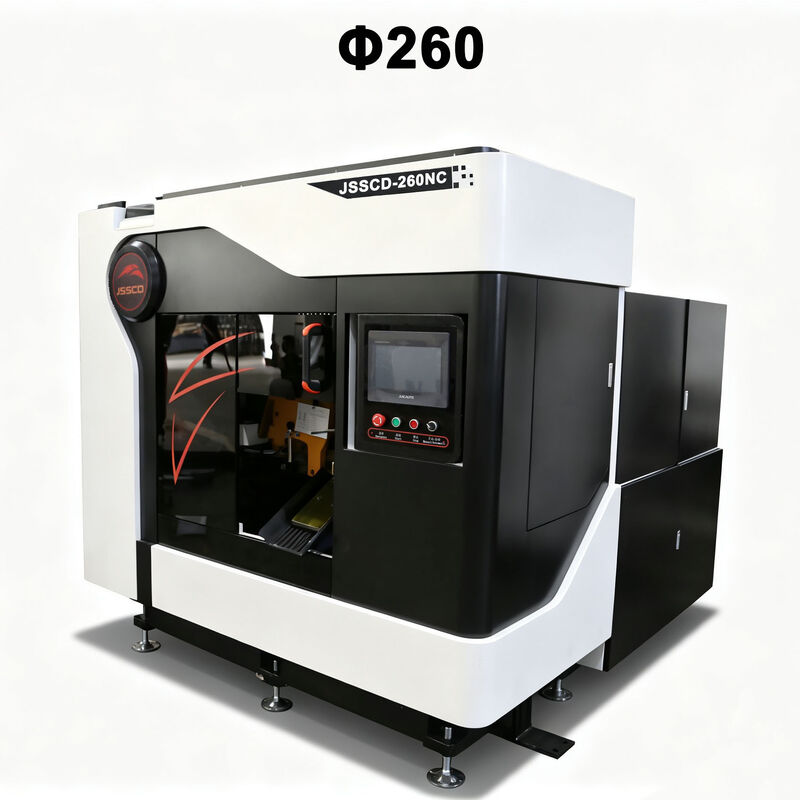

JSSCD-260NC High Speed Intelligent Circular Saw Machine is a professional CNC cold saw machine designed for automatic and high-precision cutting of large diameter metal bars and square materials. With a maximum round bar cutting capacity of Φ260mm, this automatic metal cutting saw machine integrates servo feeding, hydraulic clamping, intelligent CNC control, automatic loading, spray lubrication cooling, and chip removal systems to achieve efficient and stable production.
The machine adopts an advanced push-feed cutting structure driven by servo motor and precision ball screw, providing excellent cutting stability, high accuracy, and extended saw blade service life. The rigid cast iron machine base, high-strength transmission system, and blade stabilization technology ensure smooth operation with reduced vibration and improved cutting quality.
JSSCD-260NC is widely applied in steel processing, automotive components, mechanical manufacturing, precision machining, and other industries requiring continuous metal cutting with high productivity and low operating costs.
Technical specifications
| Item |
Specification |
| Product Model |
JSSCD-260NC |
| Product Type |
High Speed Intelligent CNC Circular Saw Machine |
| Saw Blade Size |
Φ750 * 3.8 * Φ80 mm |
| Round Bar Cutting Capacity |
Φ110–Φ260 mm |
| Square Material Cutting Capacity |
110–230 mm |
| Feeding Accuracy |
±0.05 mm |
| Feeding System |
Servo Motor + Precision Ball Screw |
| Saw Blade Speed |
20–60 rpm Variable Frequency |
| Main Motor Power |
37kW / 6P |
| Cutting Servo Motor Power |
7.5kW |
| Feeding Servo Motor Power |
3.5kW |
| Single Feeding Length |
10–800 mm |
| Feeding Speed |
5–20 m/min |
| Cutting Length Accuracy |
≤±0.1 mm |
| Vertical Cutting Tolerance |
≤±0.1/100 mm |
| Cutting Loss |
≤3.8 mm |
| Material Rack Length |
4000–7000 mm |
| Hydraulic System Pressure |
7.5 MPa |
| Cooling System |
Spray Lubrication Cooling |
| Hydraulic Oil Tank Capacity |
150L |
| Chip Removal Method |
Automatic Chain Chip Conveyor |
Application
JSSCD-260NC CNC Circular Saw Machine is designed for industries requiring high-performance metal cutting solutions.
Steel Bar Processing Industry
Suitable for cutting large diameter round steel, alloy steel, carbon steel, and other metal bars used in industrial manufacturing.
Automotive Component Manufacturing
The machine provides accurate cutting of metal blanks for shafts, transmission components, and precision automotive parts.
Mechanical Equipment Manufacturing
Ideal for preparing raw materials for gears, hydraulic components, machine structures, and industrial equipment parts.
Bearing and Precision Parts Production
Stable cutting accuracy helps reduce secondary processing and improve production consistency.
Metal Fabrication and Heavy Industry
Suitable for factories requiring continuous production, high cutting efficiency, and reduced labor costs.
FAQ
Q1: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international certification.
Q2: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q3: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q4: What is the maximum cutting capacity of this CNC circular saw machine?
A: The maximum cutting capacity is Φ260mm for round bars and 230mm for square materials.
Q5: How does JSSCD-260NC improve cutting quality?
A: The machine uses a stable push-feed structure, high rigidity guide rail, servo drive system, hydraulic clamping, and blade stabilization technology to reduce vibration and improve cutting accuracy.
