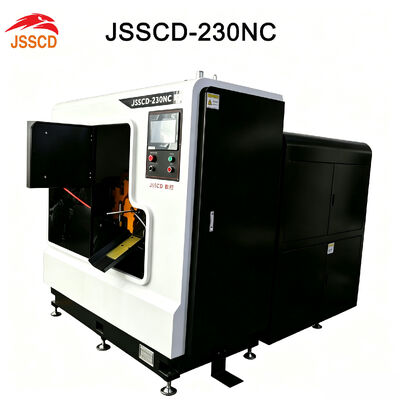

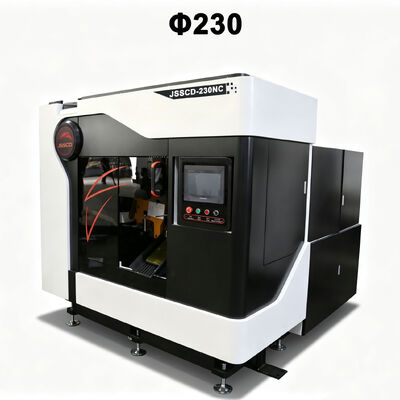

JSSCD-230NC High Speed Intelligent Circular Saw Machine is an advanced CNC cold saw machine designed for high-efficiency and precision cutting of metal bars, pipes, and square materials. Developed with a stable push-feed cutting structure, this automatic circular saw machine provides excellent cutting accuracy, long blade service life, and reliable performance for modern metal processing industries.

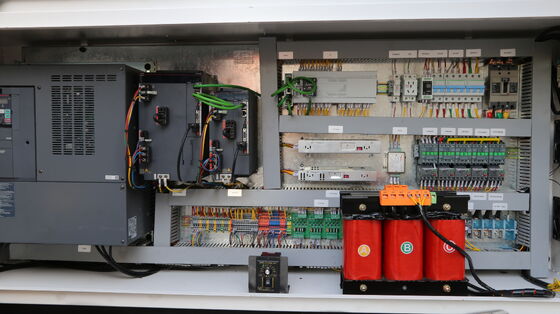

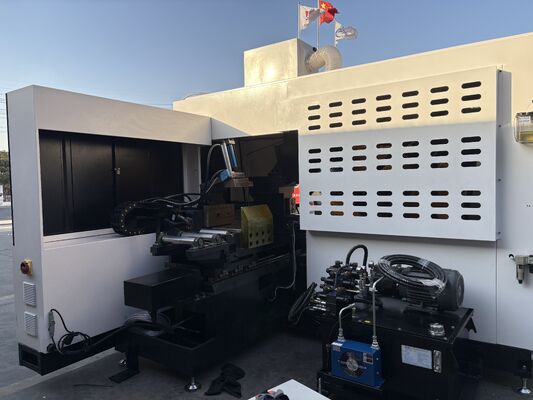

The machine integrates servo-driven feeding, precision ball screw transmission, hydraulic clamping system, automatic loading, intelligent control system, spray lubrication cooling, and automatic chip removal functions. It is suitable for continuous production lines requiring high productivity, consistent cutting quality, and reduced labor costs.
With a rigid cast iron machine base, high-strength transmission system, and optimized saw blade stabilization technology, JSSCD-230NC ensures smooth operation, low vibration, and high-quality cutting surfaces. It is an ideal solution for manufacturers in automotive parts, steel processing, mechanical manufacturing, and precision metal fabrication industries.
Technical Specifications
| Item |
Specification |
| Product Model |
JSSCD-230NC |
| Saw Blade Size |
Φ630 * 3.4 * Φ80 mm |
| Cutting Range (Round Material) |
Φ80–Φ230 mm |
| Cutting Range (Square Material) |
80–200 mm |
| Feeding Accuracy |
±0.05 mm |
| Saw Blade Speed |
20–80 rpm (variable frequency) |
| Main Motor Power |
30kW / 6P |
| Cutting Servo Motor Power |
7.5kW |
| Feeding Servo Motor Power |
3.5kW |
| Single Feeding Length |
10–800 mm |
| Feeding Speed |
5–20 m/min |
| Cutting Length Accuracy |
≤±0.1 mm |
| Vertical Cutting Tolerance |
≤±0.1/100 mm |
| Cutting Loss |
≤3.4 mm |
| Material Rack Length |
4000–7000 mm |
Application
JSSCD-230NC automatic circular saw machine is widely used for precision cutting applications in:
-
Automotive Parts Manufacturing
Suitable for cutting steel bars, shafts, and precision components requiring stable dimensions and high production efficiency.
-
Steel Processing Industry
Ideal for continuous cutting of round steel, alloy steel, carbon steel, and other metal materials.
-
Mechanical Equipment Manufacturing
Used for preparing raw materials for gears, hydraulic components, machine parts, and structural components.
-
Metal Fabrication Workshops
Provides automated cutting solutions for manufacturers requiring high output and consistent quality.
-
Bearing and Precision Component Production
High cutting accuracy helps reduce secondary machining requirements and improve production efficiency.
FAQ
Q1: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
Q2: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q3: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q4: What materials can JSSCD-230NC circular saw machine cut?
A: JSSCD-230NC is designed for cutting various metal materials such as round bars and square bars within the specified cutting range. The recommended material hardness is up to HRC42.
Q5: How does the machine improve saw blade service life?
A: The machine uses a stable push-feed structure, blade stabilization system, and spray lubrication cooling system to reduce vibration and cutting heat, helping extend blade lifespan.
