Product Overview

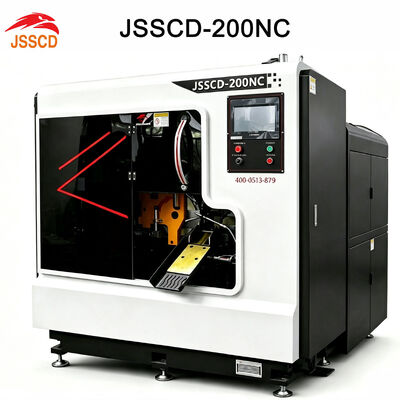

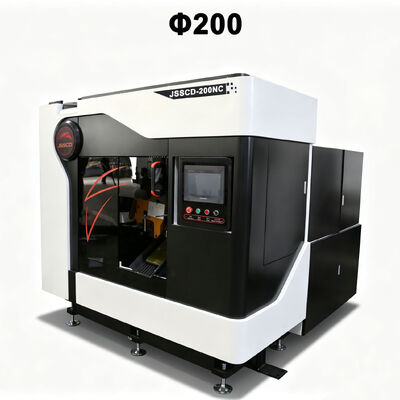

The JSSCD-200NC High Speed Intelligent Circular Saw Machine is an advanced CNC metal cutting solution designed for high-efficiency, high-precision cutting of steel bars, round bars, and square materials. Developed with a stable push-feed cutting structure, this automatic circular saw machine delivers smooth cutting performance, excellent dimensional accuracy, and extended saw blade service life.

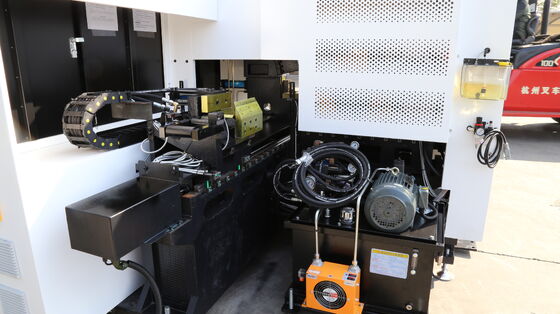

Equipped with servo motor driven ball screw feeding, hydraulic clamping systems, automatic loading, automatic material feeding, automatic cutting, and automatic sorting functions, the machine significantly reduces manual operation requirements while improving production efficiency. The rigid cast iron machine base, precision transmission system, and intelligent CNC control system ensure stable operation for continuous industrial production.
The JSSCD-200NC CNC circular saw machine is ideal for manufacturers requiring reliable metal cutting equipment for automotive parts, mechanical components, steel processing, and mass production applications.
Technical Specifications
| Item |
Specification |
| Product Model |
JSSCD-200NC |
| Machine Type |
High Speed Intelligent Circular Saw Machine |
| Saw Blade Type |
TCT Circular Saw Blade |
| Saw Blade Size |
φ520 × 3.0 × φ50 mm |
| Cutting Range (Round Bar) |
φ50 - φ200 mm |
| Cutting Range (Square Material) |
50 - 180 mm |
| Feeding Accuracy |
±0.05 mm |
| Cutting Feeding Method |
Push Feed Type |
| Cutting Drive System |
Servo Motor + Precision Ball Screw + High Rigidity Guide Rail |
| Feeding Drive System |
Servo Motor + Precision Ball Screw |
| Saw Blade Speed |
30-80 rpm (Variable Frequency) |
| Main Motor Power |
22kW / 6P |
| Servo Cutting Drive Power |
2.8kW |
| Servo Feeding Drive Power |
2.8kW |
| Single Feeding Length |
10-800 mm |
| Feeding Speed |
5-20 m/min |
| Hydraulic System Pressure |
5.5 MPa |
| Cooling Method |
Spray Lubrication Cooling |
| Hydraulic Tank Capacity |
110L |
Application
Industrial Applications of JSSCD-200NC CNC Circular Saw Machine
The JSSCD-200NC is widely used in industries requiring precision metal cutting and high-volume production.
Automotive Parts Manufacturing
Suitable for cutting steel bars and metal materials used in automotive components, ensuring stable dimensions for further machining processes.
Mechanical Manufacturing
Ideal for manufacturers producing shafts, mechanical parts, and precision components requiring consistent cutting accuracy.
Steel Processing Industry
Used for automatic cutting of round steel, alloy steel, carbon steel, and other metal materials.
Hardware and Engineering Components
Provides efficient cutting solutions for factories requiring continuous production and reduced manual operation.
Mass Production Workshops
With automatic feeding, automatic counting, and intelligent control, the machine is suitable for large-scale production environments.
FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q3: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international certification.
Q4: How does the machine improve saw blade life?
The stable push-feed structure and saw blade stabilization system reduce vibration and blade deflection, helping extend saw blade service life
Q5: Does this machine support automatic production?
Yes. The machine supports automatic feeding, automatic cutting, automatic counting, and automatic material separation, reducing manual operation requirements.
