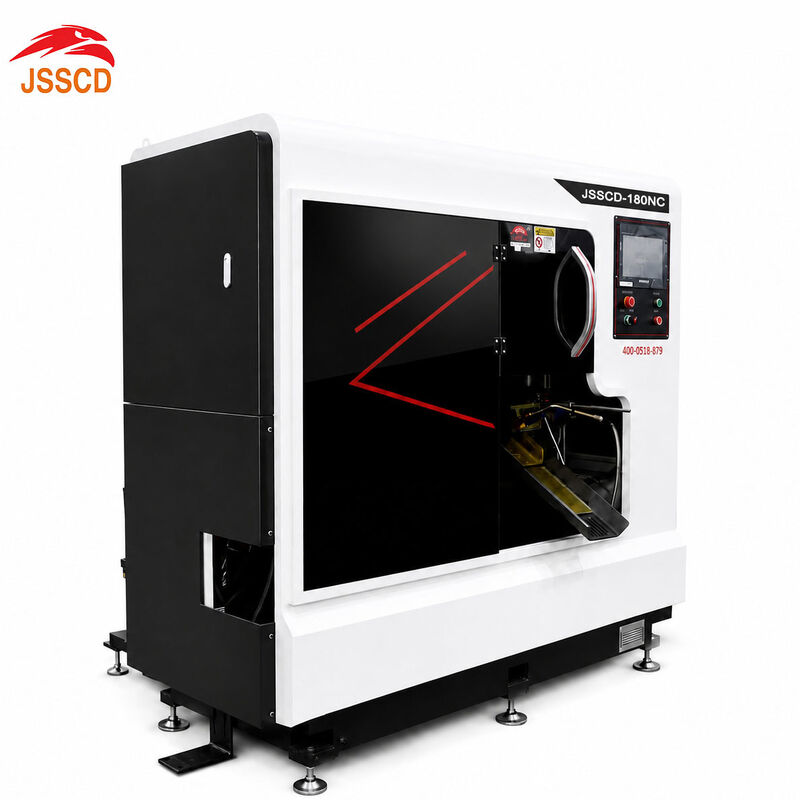

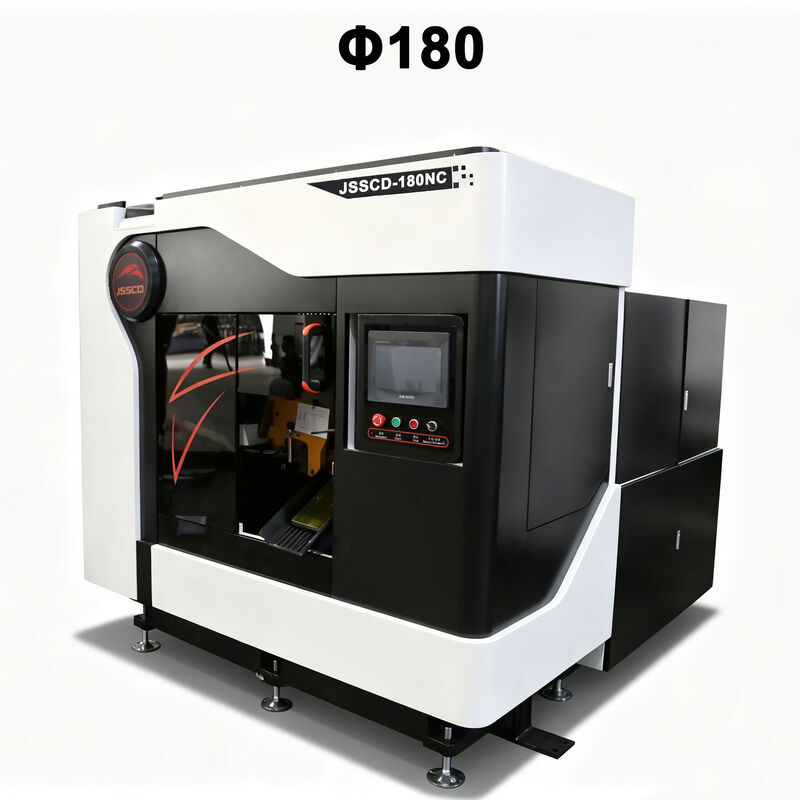

Manufactured by Jiangsu Sakoside Intelligent Machinery Technology CO.,LTD, the JSSCD-180NC is an independently developed horizontal push-type fully automatic CNC circular saw machine released. It adopts the most stable horizontal push feeding structure in the industry to deliver ultra-smooth sawing motion, protect transmission lead screws and greatly extend TCT saw blade service life.
The whole machine consists of a core cutting main unit and a standard 6-meter automatic feeding rack, supporting full-process CNC unmanned operation (only manual loading of bundled raw materials is required). Equipped with global premium brand core components and multiple automatic safety alarm systems, this machine achieves high-precision burr-free cutting of round bars and square profiles. It can adapt to complex workshop environments and reserve Ethernet communication ports for docking automated production lines, serving mass precision blanking for multiple manufacturing industries with compatibility for various metal materials and PA engineering plastic.
Technical specifications
| Model |
Unit |
JSSCD-180NC/P |
| Mainframe diamension |
mm |
2240x1790x1800 |
| Bar & round pipe |
mm |
50-180 |
| Angle bar & square tube |
mm |
50-155 |
| Saw blade size |
mm |
Φ520x3.0xφ50 |
| Pin holes and hole diameters |
mm |
4xφ16x80φ50 |
| Spindle motor power |
KW |
22(6p) |
| Spindle speed |
rpm |
20-100 |
| Feed servo motor power |
KW |
2.8 |
| Feeding servo motor power |
KW |
2.8 |
| Material removal length at the front end |
mm |
10-99 |
| Single feeding length(repeatable feeding) |
mm |
10-800 |
| Hydraulic drive motor power |
KW |
3.75 |
Applicable Industries
- Automobile Manufacturing: Precision blanking of automobile shafts, bolts and alloy structural parts
- Aerospace Industry: Cutting high-strength titanium alloy and aluminum alloy for aviation structural components
- Rail Transit: Alloy steel and aluminum profiles for train frames and accessories
- Mechanical Equipment: Round & square steel blanks for general machinery spare parts
- Hardware Tools: Raw material cutting of tool steel and copper alloy
- Ship Building: High-strength alloy steel pipes and bars blanking
- Building Materials: Processing various metal profiles and pipeline raw materials
- Pipeline Engineering: Fixed-length cutting of carbon steel and stainless steel pipes
- Mold Manufacturing: Blanking of high-hardness alloy mold steel
- Electronics Manufacturing: Precision short pieces of copper, aluminum and PA plastic
FAQ
Q1: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q2: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q4: Will heavy oil mist be generated during cutting? How to solve this problem?
A: We provide an optional two-stage electrostatic oil mist collector with over 95% oil mist removal efficiency. It decomposes oil mist and toxic odor, complies with global environmental protection regulations and protects workers’ respiratory health
Q5: What is included in the standard supply package?
A: 1 unit JSSCD-180NC main cutting machine, 1 set standard 6-meter feeding rack, 1 piece φ520 TCT saw blade, plus complete standard spare parts: expansion screws, toolbox, socket wrench set, saw blade cleaning wire brush, saw blade wear-resistant block and adjustable wrench.
Q6: What safety protection functions does the machine equip?
A9: Multi-group automatic alarm and shutdown protection for low hydraulic oil, insufficient lubricating oil and abnormal air pressure. The fully enclosed protective cover isolates cutting chips and oil mist, fully compliant with international saw machine safety standards.
