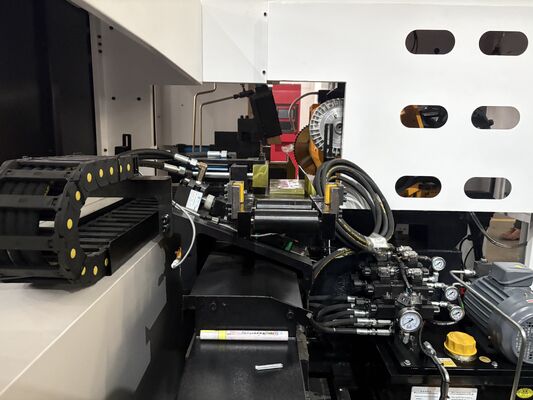

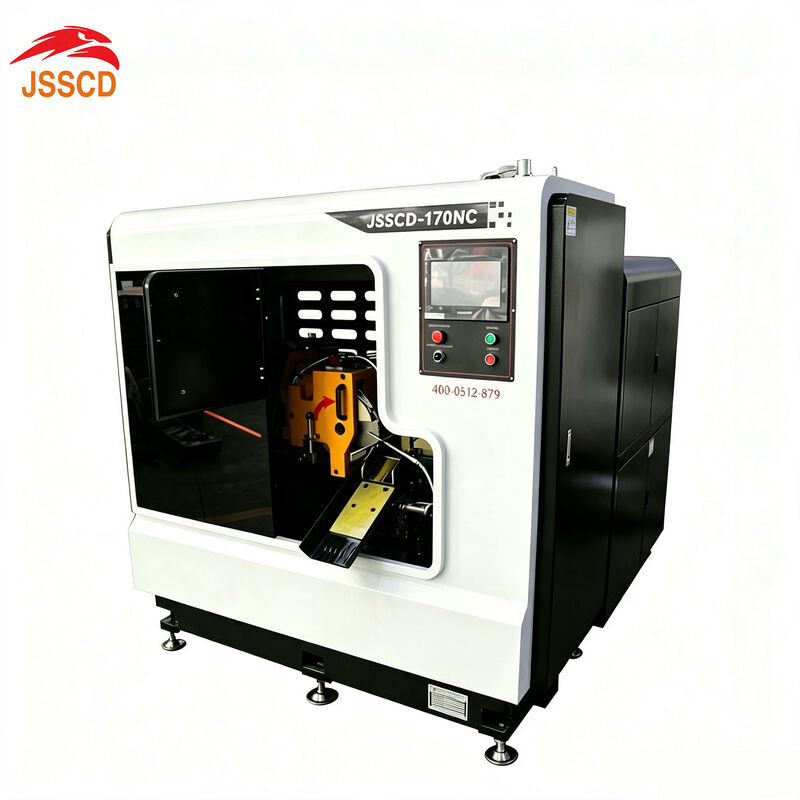

JSSCD-170NC is a self-researched and manufactured horizontal push CNC high-speed intelligent metal circular saw machine developed by our factory. Built with an integral HT250 cast iron base treated via high-temperature tempering and aging, the machine eliminates deformation risks and delivers exceptional structural rigidity far exceeding ordinary welded steel frames. It adopts a full-servo horizontal push feeding system matched with precision ball screws and high-end brand bearings, realizing fully numerical control of the whole workflow: automatic raw material loading, hydraulic clamping, high-speed sawing, automatic separation of finished parts and scrap heads/tails, as well as continuous chip evacuation without manual intervention.
Equipped with complete safety monitoring systems, optional oil mist purification device and reserved Ethernet communication port for intelligent production line integration, this circular saw equipment serves as an ideal mass-production cutting solution. It is extensively applied in automobile manufacturing, aerospace, rail transit, mold processing, hardware tools, pipeline engineering, shipbuilding, electronics and construction material industries for high-volume bar and profile cutting tasks.
Technical specifications
| Model |
Unit |
JSSCD-170NC |
| Mainframe dimensions |
mm |
2240x2320x2040 |
| Spindle motor power |
KW |
18.5 |
| Spindle speed |
rpm |
20-110 |
| Bar&round pipe |
mm |
40-170 |
| Angle bar &square tube |
mm |
40-140 |
| Saw blade size |
mm |
Φ485x2.7xφ50 |
| Pin holes and hole diameters |
mm |
4xφ16x80φ50 |
| Material removal length at the front end |
mm |
10-99 |
| Single feeding length(repeatable feeding) |
mm |
10-800 |
| Feed servo motor power |
KW |
2.3 |
| Feeding servo motor power |
KW |
2.3 |
Additional features
- Independent spray cooling lubrication system with environment-friendly cutting oil, reduces cutting heat and extends saw blade life.
- Automatic chain plate chip conveyor to clear metal scraps continuously.
- Built-in saw blade wire brush cleaning device to remove chips on saw teeth and avoid secondary cutting damage.
- Complete safety alarm system: low lubricating oil, low hydraulic pressure, insufficient air pressure auto alarm & shutdown.
- Magnetic particle damper for zero-clearance gear transmission, effectively suppress spindle vibration.
- Optional two-stage purification oil mist collector, oil fume removal rate over 95%, eco-friendly workshop environment.
- Reserved Ethernet communication port for seamless docking with automated production lines.
- Automatic material separating device to separate finished workpieces, head and tail scrap automatically.
- Enclosed automatic timing lubrication system for all transmission guide rails and bearings.
- Standard 6-meter automatic feeding rack for bundled bar stock loading, greatly reducing manual labor.
FAQ
Q1: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q2: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q3: Is the machine fully automatic? How much manual work is needed?
A: Full CNC automatic operation. Only manual bundling lifting and unpacking are required; feeding, clamping, sawing, scrap separation, counting and chip removal all run automatically. It can auto-stop once reaching the set cutting quantity.
Q4: What workshop environment requirements are needed for operation?
A: Power supply: 380V three-phase 50Hz; ambient temperature -10℃~40℃; relative humidity ≤90%; compressed air pressure 0.42Mpa±0.1Mpa.
Q5: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international certification.
