160NC/P CNC Carbide Circular Sawing Machine for Metal Alloy Industrial Cutting

160NC/P CNC Carbide Circular Sawing Machine for Metal Alloy Industrial Cutting
160NC/P CNC Carbide Circular Sawing Machine for Metal Alloy Industrial Cutting 160NC/P CNC Carbide Circular Sawing Machine for Metal Alloy Industrial Cutting 160NC/P CNC Carbide Circular Sawing Machine for Metal Alloy Industrial Cutting 160NC/P CNC Carbide Circular Sawing Machine for Metal Alloy Industrial Cutting

Large Image :  160NC/P CNC Carbide Circular Sawing Machine for Metal Alloy Industrial Cutting

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Model Number: JSSCD-160NC/P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

160NC/P CNC Carbide Circular Sawing Machine for Metal Alloy Industrial Cutting

Description
Name: 160NC/P CNC Carbide Circular Sawing Machine For Metal Alloy Industrial Cutting Color: White,Black
Cut Off Feed Method: AC Servo Motor & Ball Screw(horizontal Entry) Main Clamping Method: Hydraulic Type (One Set Each For Horizontal And 15°)
Saw Blade Debris Removal Device: Passive/Active Circular Wire Brush（optional） Gear Backlash Compensation Device: Hollow External Rotating Magnetic Powder Brake
Feeding Drive Method: AC Servo Motor & Ball Screw Feeding Clamp Method: Hydraulic Type(Horizontal Clamping)
Self-lubricating Oil System: Timed And Quantitative Forced Oil Supply Micro-lubricating System For Cutting Tools: Quasi-dry Intermittent Oil Supply
Material Separating Device: Pneumatic Reciprocating Blade Swing Anti-vibration Device: Tungsten Carbide Parallel Block
Highlight:

CNC carbide circular saw machine

,

metal alloy cutting saw machine

,

industrial CNC circular saw

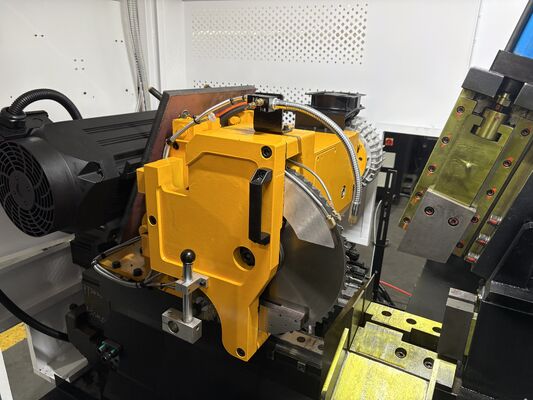

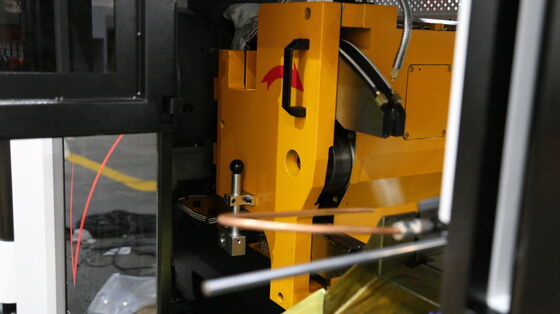

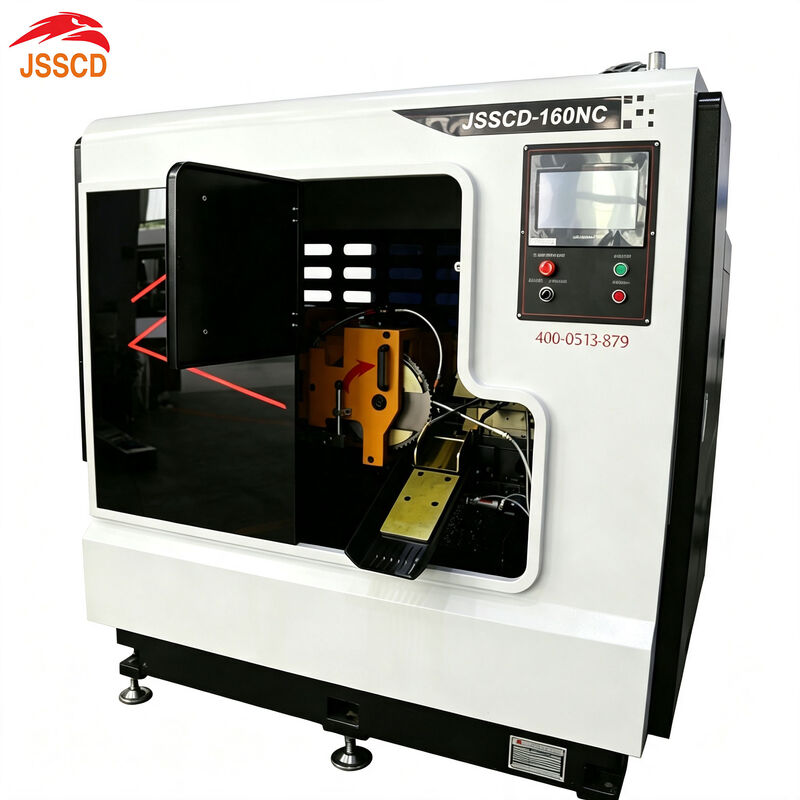

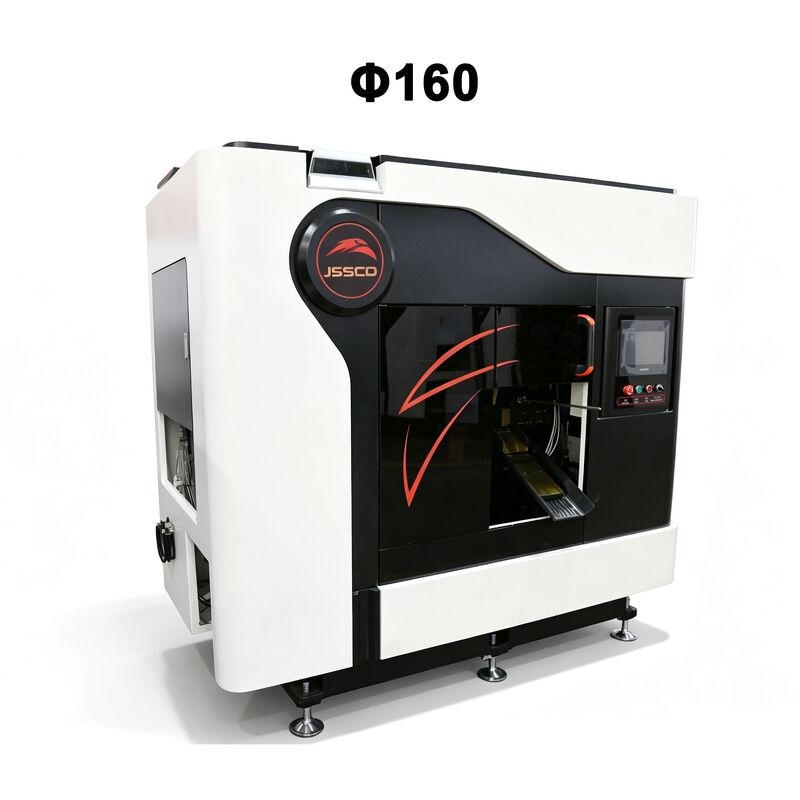

JSSCD-160NC is our self-developed high-speed intelligent horizontal push CNC carbide circular saw machine. Built with rigid HT250 cast iron bed and premium global brand core parts, it delivers stable, low-vibration cutting with high precision and smooth burr-free sections. Fully CNC automatic operation covers auto feeding, clamping, cooling and chip removal. It cuts various steels, aluminum, copper, titanium alloys and PA plastic, widely serving automotive, aerospace, mold, hardware and pipeline manufacturing industries for mass bar cutting.

Adopting horizontal push servo feeding and an exclusive saw blade stabilization system, this circular saw effectively reduces vibration to extend saw blade service life. It comes with integrated automatic lubrication, spray cooling and chip removal devices, plus an optional oil mist purifier for eco-friendly workshop operation. Equipped with PLC touchscreen control and reserved production line interfaces, it easily connects to automated workshops to boost cutting efficiency and lower labor costs for long-term industrial mass production.

Key features
  • Sturdy HT250 cast iron machine base with aging treatment, ultra-rigid & deformation-resistant
  • Horizontal push servo feeding + proprietary saw blade stabilization system, low vibration & long saw blade life
  • Full CNC automatic workflow: auto loading, clamping, cooling, chip & scrap separation
  • Global premium core components (SKF/NSK bearings, XINJE PLC) for stable low-failure operation
  • Eco-friendly spray lubrication cooling; optional 95% high-efficiency oil mist purifier
  • Reserved Ethernet interface, compatible with automated production line integration
  • Multi-protection alarms for lubrication, hydraulic pressure and air shortage for safe operation
Technical specifications
Model Unit JSSCD-160NC/P
Mainframe dimension(L*W*H) mm 2240x2320x2040
Bar&round pipe mm 40-160
Angle bar□ tube mm 40-130
Spindle motor power KW 18.5/15
Spindle speed rpm 20-110
Feed servo motor power KW 2.3
Feeding servo motor power KW 2.7
Material removal length at the front end mm 10-99
Single feeding length(repeatable feeding) mm 10-800
Hydraulic drive motor power KW 3.75(4P)
Saw blade size mm Φ480x2.7xΦ50
Pin holes and hole diameters mm 4xΦ16x80Φ50
Hydraulic oil capacity L 110
Additional features
  1. Automatic saw blade chip cleaning brush to avoid secondary cutting

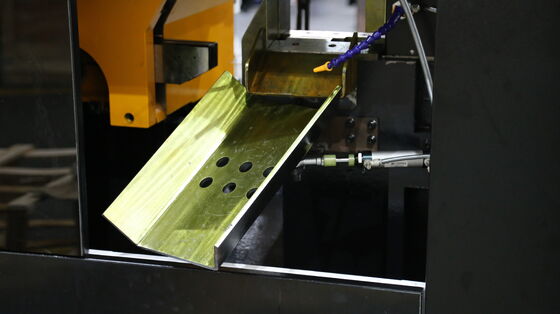

  2. Material separating device auto sorts finished workpieces, heads and tails
  3. Built-in workpiece counting function with auto-stop at set quantity
  4. Multi-condition safety alarms for oil level, hydraulic pressure and air supply
  5. Independent enclosed automatic lubrication system with timing lubrication
  6. Standard chain-plate chip conveyor for easy metal scrap collection
  7. Reserved Ethernet communication port for smart production line docking
  8. Optional two-stage oil mist collector with over 95% purification efficiency

    160NC/P CNC Carbide Circular Sawing Machine for Metal Alloy Industrial Cutting

    160NC/P CNC Carbide Circular Sawing Machine for Metal Alloy Industrial Cutting

    160NC/P CNC Carbide Circular Sawing Machine for Metal Alloy Industrial Cutting

FAQ

Q1: Does the band saw blade have any international certifications?

A: Yes, we have obtained CE, ISO international certification.

Q2: What is your method of transaction?

A: We adopt the FOB(Free ON Board) transaction.

Q3: Are you a manufacturer or a trading company?

A: We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.

Q4. How does the machine guarantee cutting precision and extend saw blade life?

A: It adopts horizontal push servo feeding and proprietary saw blade stabilization system to reduce vibration. Built-in wire brush cleans saw teeth to avoid secondary cutting.

Q5: What supporting accessories are included in the standard supply scope?

A: Standard package contains 1 main machine, 6-meter feeding rack, one φ480 saw blade, complete tool set and installation spare parts like expansion screws.
