150NC/X CNC Circular Saw for Automobile Aerospace Rail Transit Hardware Production

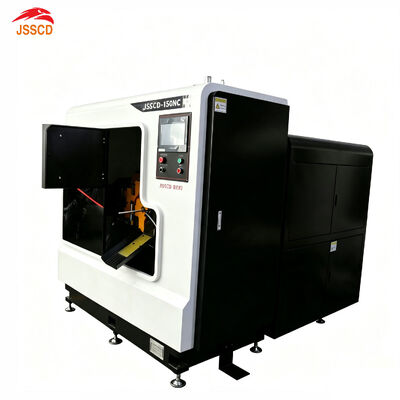

The JSSCD-150NC high-speed automatic circular saw machine is engineered for accurate and continuous cutting of round and square metal bars in medium- and high-volume production. It processes round bars from Ø40 to Ø150 mm and square bars from 40 to 105 mm with a Ø460 * 2.7 mm TCT circular saw blade.

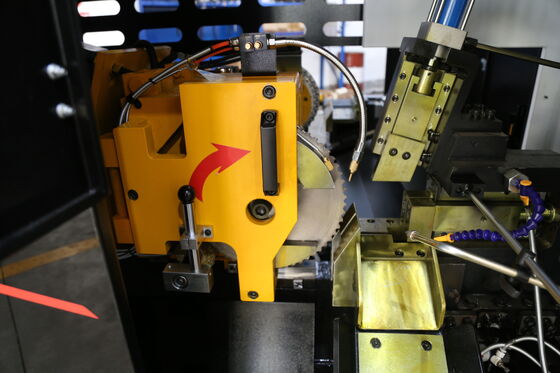

The machine uses a stable 15° inclined sawing structure driven by an AC servo motor, precision ball screw and high-rigidity guide rail. This controlled inclined movement helps reduce cutting vibration, improve blade stability and maintain reliable cutting quality during continuous operation.

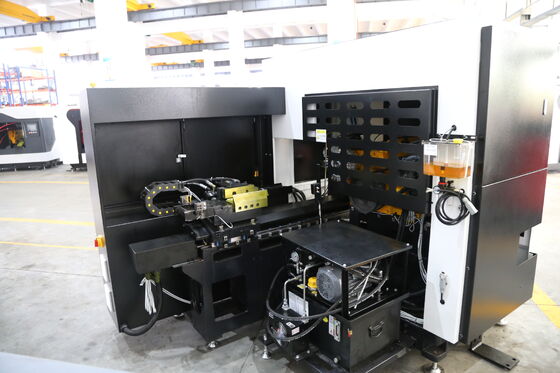

Automatic loading, servo feeding, hydraulic clamping, material detection, cutting, finished-piece counting, remnant separation and chip conveying are integrated into one production system. With feeding accuracy of ±0.05 mm and cut-length tolerance within ±0.20 mm, the JSSCD-150NC helps manufacturers reduce manual handling, improve material utilization and achieve consistent blank dimensions.

Send us your material grade, diameter, cutting length and target output for a machine configuration and quotation.

1. Hardened alloy steel clamping jaws (HRC58+) High wear resistance, adjustable clamping force for various workpieces.
2. Mist micro-lubrication cooling system Minimize burrs, lower cutting heat and save cutting oil cost.
3. Built-in automatic saw blade wire brush cleaner Clear metal chips in real time to avoid secondary blade wear.
4. Multi automatic safety alarm system Alarm and auto-stop for low lubricant, hydraulic and air pressure.
5. Optional two-stage oil mist collector Over 95% oil fume removal rate to meet environmental workshop standards.
6. Reserved Ethernet communication port Supports seamless connection with automated production lines.
7. Wide cutting range up to Φ150mm round bar Suitable for carbon steel, stainless steel, alloy, aluminum, copper and PA plastic.

The JSSCD-150NC automatic circular saw machine is suitable for repetitive, fixed-length cutting of metal bars before turning, milling, forging, drilling or other secondary manufacturing operations.

Typical applications include:

• Cutting carbon steel round bars.
• Cutting alloy steel bars within the specified hardness range.
• Preparing blanks for CNC lathes and machining centers.
• Cutting raw material for automotive components.
• Producing bearing, shaft, gear and fastener blanks.
• Cutting bars for hydraulic and pneumatic components.
• Preparing metal billets for forging operations.
• Batch cutting of square steel bars.
• Automated production requiring consistent part length.
• Manufacturing environments seeking to reduce manual material handling.

The specified raw-material requirements are:

• Material straightness or bending: no more than 3 mm per meter.
• Material tensile strength: no more than 1,800 N/mm².
• Material hardness: no more than HRC42.
• Raw-material ends should be relatively flat.
• Raw bars should not have major burrs, bevels, dents or other serious defects.

Actual cutting speed and saw-blade selection depend on material grade, hardness, bar size, cutting length and required surface quality.

A: The warranty period is 12 months from the date when the final acceptance certificate is signed by both parties. During the warranty period, free repairs and replacement of components are provided (except for cases of improper operation).

A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.

Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.

Yes, we have obtained CE, ISO international certification.

A: The slanted feed structure ensures stable cutting, less blade vibration, longer lead screw and saw blade service life, and smooth burr-free cutting surfaces

A: Optional two-stage electrostatic oil mist collector, oil fume removal rate over 95%, meets environmental standards
