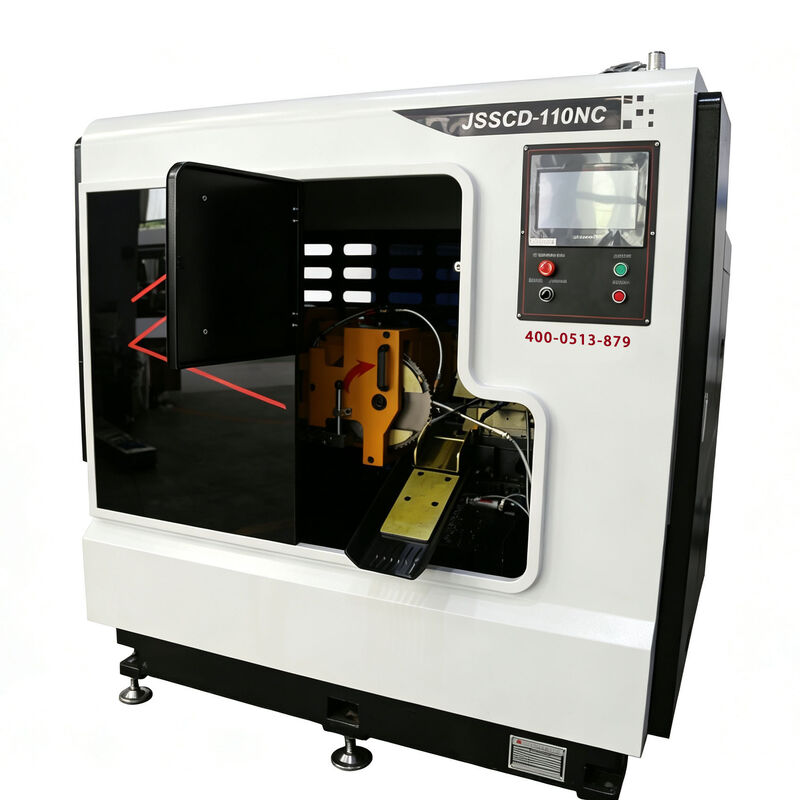

The JSSCD-110NC High-Speed Intelligent CNC Circular Saw Machine is an advanced automatic metal cutting solution developed by Jiangsu Sakoside Intelligent Machinery Technology Co., Ltd. Designed for high-efficiency and high-precision cutting of steel bars, round bars, and square materials, this machine integrates intelligent feeding, servo control, automatic loading, precision sawing, cooling lubrication, and chip removal systems to meet the requirements of modern automated manufacturing.
Equipped with a servo-driven precision ball screw feeding system, the JSSCD-110NC achieves a feeding accuracy of ±0.05mm, ensuring consistent cutting length and reducing material waste during batch production. The stable horizontal push-type cutting structure improves cutting rigidity, reduces vibration, and extends circular saw blade service life while maintaining excellent cutting quality.
The machine adopts a high-rigidity HT250 cast iron machine base, precision gear transmission system, SKF/NSK high-precision bearings, and optimized spindle structure to guarantee stable operation under continuous industrial production conditions. The cutting section achieves high precision with excellent verticality and surface finish, making it suitable for applications requiring reliable dimensional accuracy.

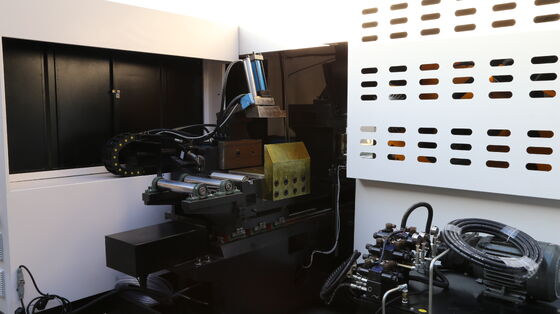

With a fully automatic production process, including automatic material loading, servo feeding, hydraulic clamping, automatic cutting, material separation, and automatic chip conveying, the JSSCD-110NC significantly reduces manual intervention, improves production efficiency, and provides a safer and more intelligent metal processing solution.
Key Features
- ±0.05mm High Precision Servo Feeding
- Automatic Intelligent Cutting System
- High Rigidity Push-Type Cutting Structure
- Heavy-Duty HT250 Cast Iron Structure
- PLC CNC Control & Automation Integration
- Efficient Cooling & Blade Protection Technology
Technical specifications
| Model |
Unit |
JSSCD-110NC |
| Mainframe dimensions |
mm |
2240*1800*1890 |
| Spindle speed |
Rpm |
20-110 |
| Rated pressure of the hydraulic system |
mpa |
5.5 |
| Hydraulia oil capacity |
L |
100 |
| Hydraulic drive motor power |
kw |
2.25(4p) |
| Feed servo motor power |
kw |
2 |
| Bar&round pipe |
mm |
20-110 |
| Angle bar & square bar |
mm |
20-90 |
| Saw blade size |
mm |
φ360*2.6*φ40 |
Applications
The JSSCD-110NC is suitable for high-volume precision cutting applications in industries including:
- Automotive parts manufacturing
- Bearing and shaft processing
- Mechanical component production
- Steel bar processing
- Hydraulic components
- Metal fabrication and automation production lines
It is especially suitable for customers requiring high productivity, stable cutting accuracy, reduced material waste, and automated production management.
Why Choose JSSCD-110NC?
Compared with traditional cutting equipment, the JSSCD-110NC provides:
- Higher automation level
- Better cutting consistency
- Lower labor dependency
- Reduced material waste
- Longer saw blade lifespan
- Improved production efficiency
With its combination of precision servo control, intelligent automation, and robust mechanical structure, the JSSCD-110NC delivers a reliable solution for modern metal cutting factories seeking higher productivity and smarter manufacturing.
FAQ
Q1: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
Q2: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q3: Does the band saw blade have any international certifications?
A: Yes, we have obtained CE, ISO international certification.
Q4: What is your method of transaction?
A: We adopt the FOB(Free ON Board) transaction.
Q5: How does the machine improve saw blade life?
The JSSCD-110NC improves blade durability through a stable spindle structure, blade stabilization system, automatic chip cleaning device, and spray cooling lubrication system, reducing heat generation and blade vibration.
Q6: What after-sales service does Jiangsu Saksid provide?
Jiangsu Saksid provides equipment installation, commissioning, operator training, technical support, and one-year warranty service to ensure stable operation after delivery.
