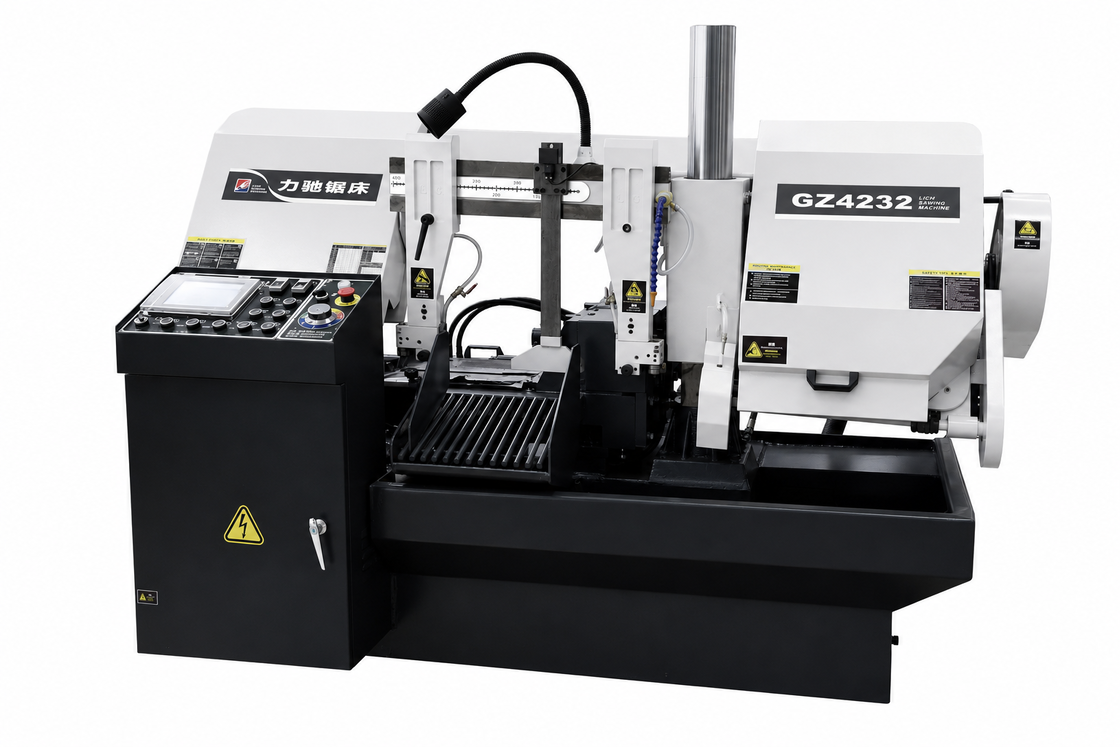

GZ4232 High Precision Cutting Metal Band Sawing Machine

Large Image : GZ4232 High Precision Cutting Metal Band Sawing Machine

Product Details:

Place of Origin:	China
Brand Name:	JSSCD
Certification:	HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Model Number:	JSSCD-4240

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	depending on the machine model
Delivery Time:	7-60 work days

Contact Now Chat Now

GZ4232 High Precision Cutting Metal Band Sawing Machine

Description

Model:	GZ4232 CNC Automatic Band Saw	Max. Cutting Capacity – Round:	φ320 Mm
Max. Cutting Capacity – Square:	320 Mm	Blade Speed:	30 / 45 / 60 / 80 M/min (4-speed)
Feed Rate Adjustment:	Hydraulic Infinitely Variable	Workpiece Clamping:	Hand-hydraulic
Blade Size:	1.1 × 34 × 4115 Mm	Machine Dimensions (L×W×H):	Machine Dimensions (L×W×H)

320mm CNC Automatic Band Saw For Bearing Fastener Automotive Parts Manufacturing

The GZ4232 CNC Automatic Horizontal Band Saw is a precision cutting solution designed to serve multiple industries with diverse metal cutting requirements. With a cutting capacity of φ320 mm for round materials and 320 mm for square materials, this heavy-duty band saw delivers reliable performance for bearing manufacturing, fastener production, automotive parts manufacturing, and general metal processing applications.

Built with a robust dual-column structure and steel plate welded frame that has undergone vibration aging treatment, the GZ4232 ensures exceptional stability and cutting accuracy. The machine features a PLC control system with color touch screen interface, offering both manual and automatic operation modes. The hydraulic feeding system with optical ruler positioning provides precise material indexing with ±0.2 mm cutting length tolerance, while the bundle cutting capability allows multiple materials to be cut simultaneously for increased productivity.

Key Features

Wide Cutting Capacity - Cuts round materials up to φ320 mm and square materials up to 320 mm, suitable for various industrial stock sizes
Four-Speed Blade Selection - Offers 30/45/60/80 m/min blade speeds for optimal cutting of different materials
Hydraulic Infinitely Variable Feed - Feed rate can be adjusted steplessly to match material characteristics
Bundle Cutting Capability - Equipped for simultaneous cutting of multiple bars, ideal for high-volume production
High Precision Cutting - Optical ruler positioning delivers ±0.2 mm cutting length tolerance

Technical Specifications

Parameter	Specification
Power Supply	380V / 50Hz / 3Phase
Hydraulic Tank Capacity	80 L
Coolant Tank Capacity	50 L
Control System	PLC + Touch Screen + Button
Feeding System	Hydraulic feeding with optical ruler
Single Feed Stroke	400 mm (multiple feeds available)
Cutting Length Tolerance	±0.2 mm
Hydraulic System Pressure	2 - 2.5 MPa

Typical Workpieces

Axle shafts
Steering linkage components
Transmission shafts
Suspension components
Engine mounting brackets
Chassis hardware
