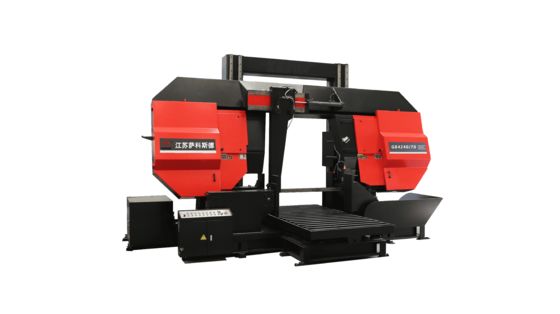

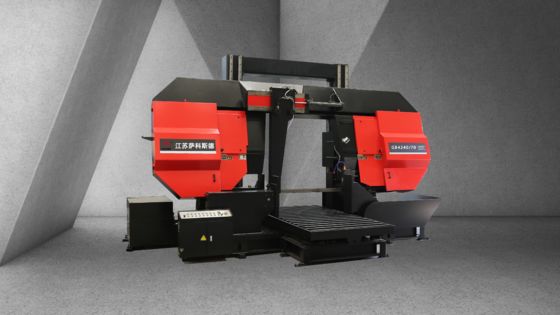

CNC Horizontal Band Saw For Cutting Carbon Steel Stainless Steel Alloy Steel

CNC Horizontal Band Saw For Cutting Carbon Steel Stainless Steel Alloy Steel
CNC Horizontal Band Saw For Cutting Carbon Steel Stainless Steel Alloy Steel CNC Horizontal Band Saw For Cutting Carbon Steel Stainless Steel Alloy Steel CNC Horizontal Band Saw For Cutting Carbon Steel Stainless Steel Alloy Steel

Large Image :  CNC Horizontal Band Saw For Cutting Carbon Steel Stainless Steel Alloy Steel

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E00258R0S HB24S00242R0S
Model Number: JSSCD-4240
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Contact Now Chat Now

CNC Horizontal Band Saw For Cutting Carbon Steel Stainless Steel Alloy Steel

Description
Model: GZ4240 Machine Dimensions (L×W×H): 2400 × 2300 × 1600 Mm
Max. Cutting Capacity – Round: φ400 Mm Max. Cutting Capacity – Square: 400 Mm
Blade Speed: 25 / 35 / 50 / 65 M/min (4-speed) Blade Size: 1.3 × 41 × 4700 Mm

CNC Horizontal Band Saw For Cutting Carbon Steel Stainless Steel Alloy Steel
The GZ4240 CNC Automatic Horizontal Band Saw is a versatile cutting solution designed to handle a wide range of metal materials and specifications. With a cutting capacity of φ400 mm for round materials and 400 mm for square materials, this heavy-duty band saw efficiently processes carbon steel, stainless steel, alloy steel, tool steel, and other ferrous metals commonly used in manufacturing and fabrication operations.
What sets the GZ4240 apart is its ability to adapt to different material characteristics. Whether cutting soft low-carbon steel or hard alloy steel, the machine's four-speed blade selection (25/35/50/65 m/min) and hydraulic infinitely variable feed control allow operators to optimize cutting parameters for each specific material. The result is clean cuts, extended blade life, and consistent quality across diverse production requirements.
The machine features a PLC control system with color touch screen interface, offering both manual and automatic operation modes. The hydraulic feeding system with optical ruler positioning ensures precise material indexing with ±0.2 mm cutting length tolerance, while the bundle cutting capability allows multiple materials to be cut simultaneously for increased productivity.
Key Features for Multi-Material Cutting
  • Wide Cutting Capacity - Handles round materials up to φ400 mm and square materials up to 400 mm, accommodating various stock sizes
  • Four-Speed Blade Selection - Offers 25/35/50/65 m/min blade speeds for optimal cutting of different metal types and hardness levels
  • Hydraulic Infinitely Variable Feed - Feed rate can be adjusted steplessly to match material characteristics, optimizing cutting efficiency and blade life
  • Bundle Cutting Capability - Equipped with bundle cutting device for simultaneous cutting of multiple bars, ideal for processing different specifications in one setup
  • High Precision Cutting - Optical ruler positioning delivers ±0.2 mm cutting length tolerance for consistent part dimensions across all material types
Technical Specifications
Power Supply 380V / 50Hz / 3Phase
Hydraulic Tank Capacity 80 L
Coolant Tank Capacity 50 L
Control System Manual and automatic dual mode
Feeding System Hydraulic feeding with optical ruler
Single Feed Stroke 600 mm (multiple feeds available)
Cutting Length Tolerance ±0.2 mm
Bundle Cutting Equipped with bundle cutting device
CNC Horizontal Band Saw For Cutting Carbon Steel Stainless Steel Alloy Steel 0 CNC Horizontal Band Saw For Cutting Carbon Steel Stainless Steel Alloy Steel 1 CNC Horizontal Band Saw For Cutting Carbon Steel Stainless Steel Alloy Steel 2
Applications Across Different Metal Types
Application Material Typical Specifications GZ4240 Advantage
Structural Fabrication Carbon Steel φ50-300 mm round, up to 400 mm square High speed cutting for productivity
Pipe and Tube Processing Carbon Steel, Stainless Steel φ20-300 mm Bundle cutting for multiple pieces
Bearing Manufacturing Bearing Steel (GCr15) φ30-150 mm ±0.2 mm accuracy for consistent blanks
Mold Base Preparation Tool Steel (Cr12, H13) Up to 400 * 400 mm Low speed, high torque for hard materials
Automotive Parts Alloy Steel (40Cr) φ30-200 mm Stable cutting for critical components
Food Equipment Stainless Steel (304, 316) φ20-200 mm Clean cuts with reduced feed rates
Heavy Equipment High Carbon Steel φ50-350 mm Robust construction for continuous operation
FAQ for Multi-Material Cutting Applications
Q1: What materials can the GZ4240 cut?
A: The GZ4240 is designed for cutting carbon steel (Q235, 20#, 45#), stainless steel (304, 316), alloy steel (40Cr, 20CrMnTi), tool steel (Cr12, H13), bearing steel (GCr15), and other ferrous metals.
Q2: How do I adjust the machine for different materials?
A: The machine offers four blade speeds (25/35/50/65 m/min) and hydraulic infinitely variable feed control. Operators can easily adjust these parameters via the touch screen interface based on the material being cut.
Q3: What is the cutting accuracy across different materials?
A: The GZ4240 delivers cutting length tolerance of ±0.2 mm with optical ruler positioning, consistent across all material types when properly configured.
Q4: Can the machine cut stainless steel?
A: Yes, the GZ4240 cuts stainless steel effectively. For stainless steel (304, 316), use slower blade speeds (25-35 m/min) and reduced feed rates to prevent work hardening and extend blade life.
Q5: Can the machine cut multiple materials in one batch?
A: Yes, the bundle cutting capability allows multiple bars of similar specifications to be cut simultaneously. For different material types in the same batch, we recommend cutting each material separately with optimized parameters.
