150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine

150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine
150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine
150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine 150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine 150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine 150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine 150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine 150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine 150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine

Large Image :  150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Model Number: JSSCD-150NC/X
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Payment Terms: FOB
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

150NC/X Metal Profile Circular Sawing Machine 15° Angle Auto Feeder Saw Machine

Description
Name: JSSCD-150NC/X CNC High Speed Circular Saw Machine (Angled-Push) Color: Red，Black
Condition: New Dimension: 2240x2320x2040
Use: Material Cutting Cuttable Material: Carbon Steel，Stainless Steel，Alloy Steel，Aluminum，Aluminum Alloy，Copper，Copper Alloy，Titanium Alloy，PA
Application: Automobile Manufacturing，Aerospace，Rail Transit，Mechanical Equipment，Hardware Tools，Ship Building，Building Material，Pipeline Engineering，Mold Manufacturing，Electronics Manufacturing Mechanical Control: Intelligent Control，Automation
Saw Type: Diagonal Cut Cutting Precision: ±0.05mm
Feeding Precision: ±0.1mm FAT: Sample Trial Cutting Verification
Safety Protection Devices: Emergency Braking，Anti-splash Shield Hydraulic Oil: Reusable
Cutting Debris Removal Device: Chain Plate Chip Conveyer
Highlight:

metal profile Circular Sawing Machine

,

feeding system Circular Sawing Machine

,

15° angle electric circular wood saw

JSSCD-150NC/X CNC High Speed Circular Saw Machine (Angled-Push)
Product Description
The JSSCD-150NC/X CNC High Speed Circular Saw Machine (Angled-Push) is engineered for precision metal profile cutting, specializing in angled cutting applications. Its innovative 15° top-to-bottom cutting method delivers high-speed performance with automatic control, exceptional precision, and energy efficiency, making it an essential solution for metal processing operations.
Key Features
  • Specialized for cutting round pipes, angle irons, and square pipes without frequent fixture changes
  • 15° angle cutting disperses stress for smoother, flatter edges
  • Advanced transmission and clamping system ensures stability during high-speed cutting
  • Intelligent CNC control for precise speed and angle adjustments
  • High-precision CNC system with intuitive programming interface
  • Optional automatic feeding system for continuous batch cutting
  • Improves material utilization and reduces production costs
Technical Specifications
Specification Unit Value
Mainframe dimensions mm 2240*2320*2040
Bar & round pipe capacity mm 30-150
Angle bar & square bar capacity mm 30-138
Saw blade size mm φ460*2.7*φ50
Spindle motor power KW 18.5/15
Spindle speed rpm 20-110
Feeding servo motor power KW 2.7
Hydraulic drive motor power KW 3.75(4p)
Rated pressure of hydraulic system mpa 5.5
Additional Features
  • Cut off feed mode: AC servo motor & ball screw / 15° cutting-in
  • Main clamping method: Hydraulic type (horizontal and 15° sets)
  • Saw blade debris removal: Passive/active circular wire brush (optional)
  • Gear backlash compensation: Hollow external rotating magnetic powder brake
  • Self-lubrication oil system: Timed and quantitative forced oil supply

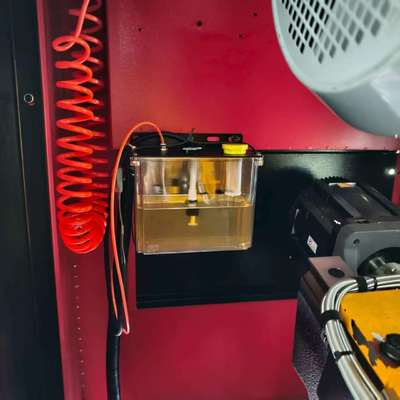

  • Micro-lubrication system: Quasi-dry intermittent oil supply
  • Material separating device: Pneumatic reciprocating
Product Images

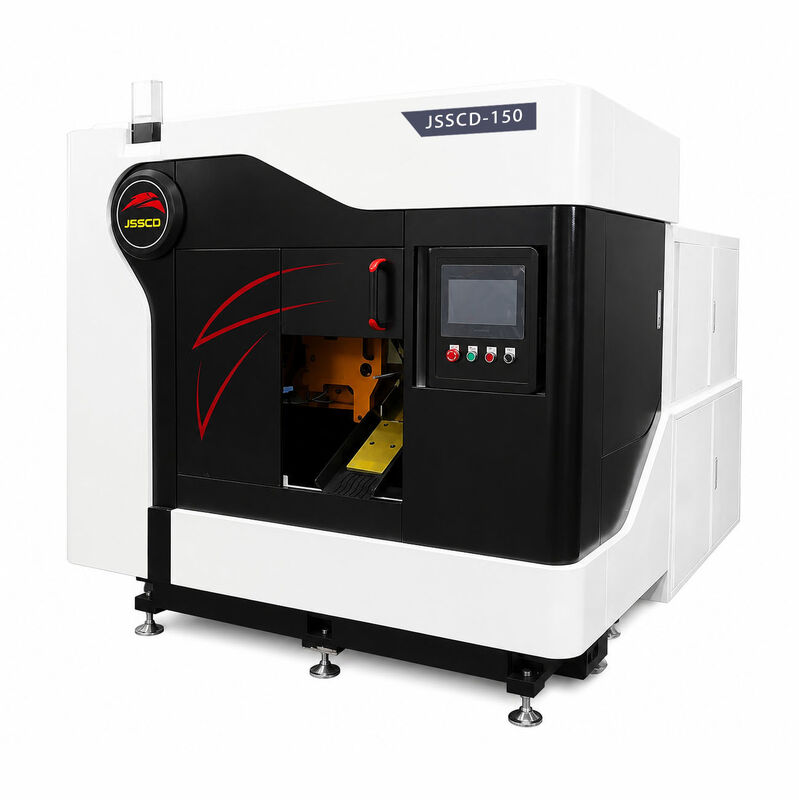

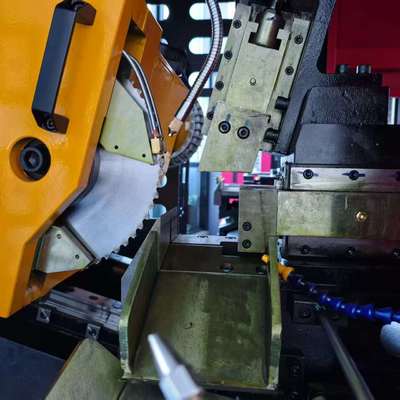

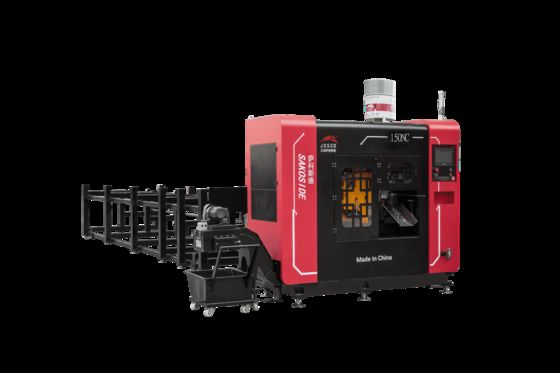

JSSCD-150NC/X CNC Circular Saw Machine front view JSSCD-150NC/X CNC Circular Saw Machine side view JSSCD-150NC/X CNC Circular Saw Machine cutting operation JSSCD-150NC/X CNC Circular Saw Machine control panel
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
A: We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
A: Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
A: We perform test cuts with customer-provided samples and supply detailed cutting data along with operation videos.
Q4: What is your method of transaction?
A: We typically use FOB (Free On Board) transactions.
Q5: How about your delivery time?
A: Standard delivery is 7-60 work days after order confirmation, depending on product and quantity.
Q6: What are your payment terms?
A: Standard terms are 30% deposit by T/T with 70% balance paid before shipment. Other methods available upon request.
Q7: Does the band saw blade have any international certifications?
A: Yes, our products have obtained CE and ISO international certifications.
