JSSCD-130NC/X CNC High Speed Professional Circular Saw(Angled-Push)
In the demanding arena of metal profile processing, the JSSCD-160NC/X CNC High-Speed Circular Saw Machine (Angled-Push) stands out as a cornerstone of efficiency and quality. Engineered specifically for metal cutting, its exceptional capability in angled operations makes it indispensable for modern production lines.
Core Innovation: The 15° Advantage

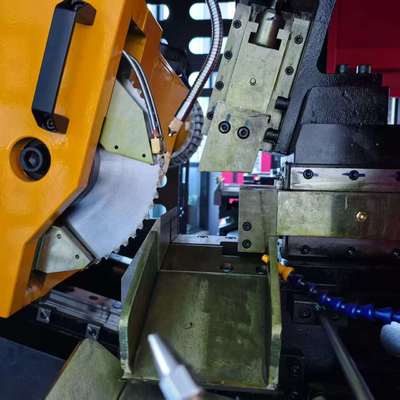

The machine's defining feature is its unique top-to-bottom cutting action at a precise 15° angle. This innovative approach strategically disperses cutting forces, resulting in significantly reduced stress impact on workpieces and exceptionally smooth, flat cut edges. This makes the JSSCD-160NC/X the preferred solution when superior cut quality is non-negotiable.
Versatility Meets Simplified Operation
This saw handles a diverse range of profiles including round tubes, angle steels, and square tubes with remarkable flexibility. It effortlessly adapts to varying sizes and shapes of metal stock. The sophisticated intelligent control module meticulously governs cutting speed, angle, and other critical parameters, ensuring consistent, high-precision results meeting exact specifications every time.
Robust Performance & Intelligent Control
- High-strength transmission and clamping system guarantees immovable workpiece security

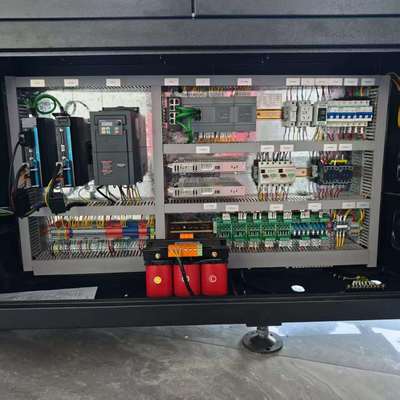

- High-precision CNC control system with intuitive human-machine interface (HMI)
- Simplified programming with configurable cutting parameters and program storage
- Reduced manual intervention and minimized human error for automated production
Technical Specifications
| Model |
Unit |
JSSCD-160NC/X |
| Mainframe dimensions |
mm |
2230*1800*1890 |
| Bar & round pipe |
mm |
30-130 |
| Angle bar & square bar |
mm |
30-115 |
| Saw blade size |
mm |
φ400*2.7*φ40 |
| Spindle motor power |
KW |
15 |
| Spindle speed |
rpm |
20-120 |
| Feeding servo motor power |
KW |
2 |
| Hydraulic drive motor power |
KW |
2.25(4p) |
| Rated pressure of the hydraulic system |
mpa |
5.5 |
Productivity & Sustainability Features
- Optional automatic feeding system for continuous, unattended batch cutting
- Improved material utilization reduces costly waste
- Faster cutting speeds and automation shorten production cycles
- Reduced labor requirements and minimized errors translate to cost savings
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated team of technicians specializing in design, manufacturing, and sales.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting. We will provide detailed cutting data and a video of the machine operation for confirmation.
Q4: What is your method of transaction?
We typically use FOB (Free On Board) transactions.
Q5: How about your delivery time?
Delivery typically takes 7-60 work days after order confirmation, depending on items and quantity.
Q6: How about the payment term?
Standard terms are 30% deposit, with 70% balance paid before shipment. Other methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
