High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table

High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table
High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table

Large Image :  High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Model Number: JSSCD-110NC/X
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Payment Terms: FOB
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table

Description
Name: JSSCD- 110NC/X CNC High Speed Circular Saw Machine Color: Red,Black
Condition: New Dimension: 2230x1800x1890
Use: Material Cutting Cuttable Material: Carbon Steel,Stainless Steel,Alloy Steel,Aluminum,Aluminum Alloy,Copper,Copper Alloy,Titanium Alloy,PA
Application: Automobile Manufacturing,Aerospace,Rail Transit,Mechanical Equipment,Hardware Tools,Ship Building,Building Material,Pipeline Engineering,Mold Manufacturing,Electronics Manufacturing Mechanical Control: Intelligent Control,Automation
Saw Type: Straight Cut/Diagonal Cut Cutting Precision: ±0.05mm
Feeding Precision: ±0.1mm FAT: Sample Trial Cutting Verification
Safety Protection Devices: Emergency Braking,Anti-splash Shield Hydraulic Oil: Reusable
Cutting Debris Removal Device: Chain Plate Chip Conveyer
Highlight:

High Speed circular sawing machine

,

circular sawing machine Stainless steel

,

2230mm circular saw table

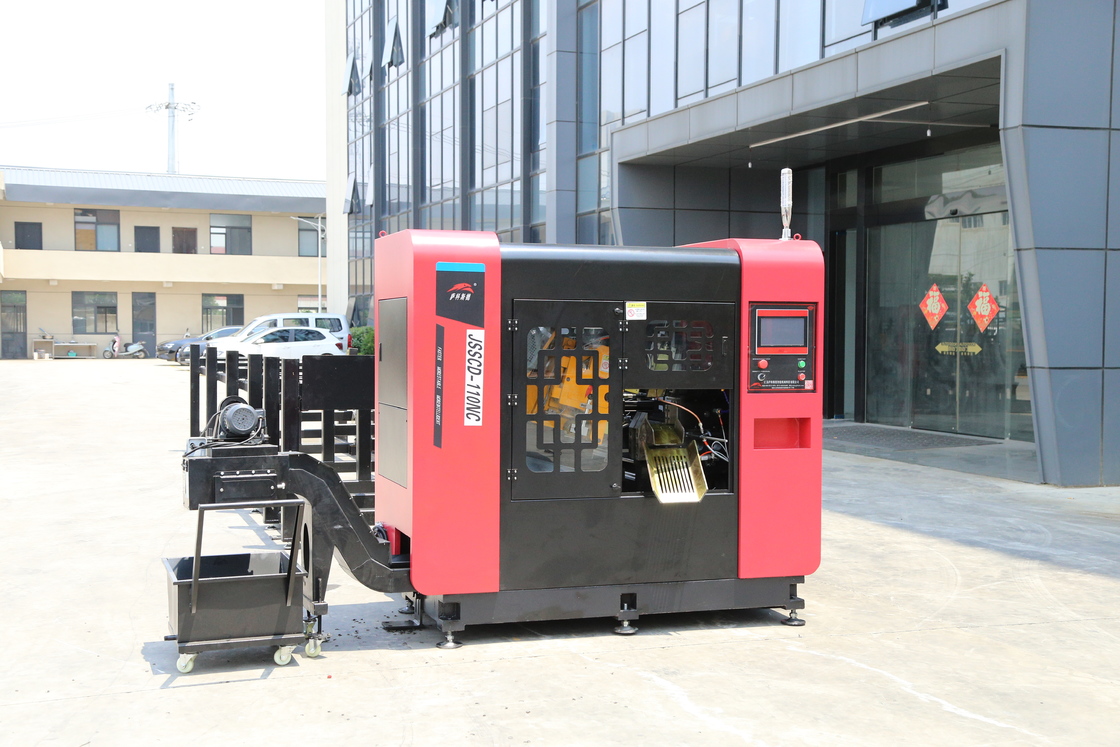

JSSCD-110NC/X CNC High Speed Circular Saw Machine (Angled-Push)

Within the demanding metal fabrication sector, where maximizing output and maintaining exactness are critical, this engineered CNC high-speed circular saw offers a distinct advantage. It is particularly adept at executing cuts across a wide range of angles. The defining feature is its specialized 15-degree downward cutting motion. When integrated with rapid operation, smart automation, superior accuracy, and environmentally conscious design, it emerges as a vital high-productivity asset for contemporary manufacturing setups.

This unit capably handles diverse standard metal profiles including tubes and structural sections. Its engineered design substantially improves operational adaptability. This minimizes the necessity for repeated fixture adjustments caused by differences in material form or dimensions, effortlessly accommodating varied cutting specifications.

Key Features

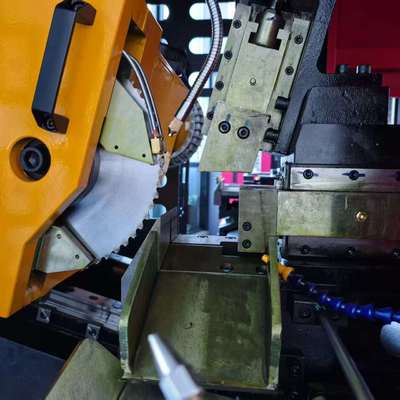

  • 15-degree downward cutting path - Scientifically distributes cutting forces, significantly lessening impact on the part, and consistently yields clean, planar cut faces
  • Sophisticated drive system and robust workholding mechanism ensures reliable part immobilization during high-speed cutting
  • Potent intelligent control unit accurately governs critical operational parameters like feed rate and cutting angle

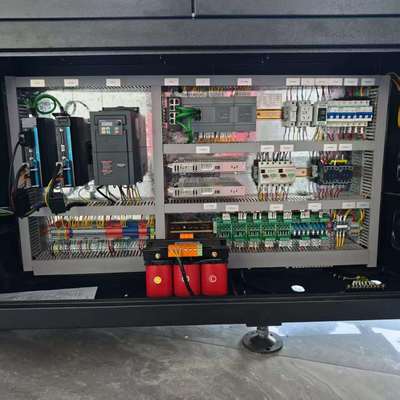

  • Integrated high-accuracy CNC system with ergonomic Human-Machine Interface for convenient operation
  • Optional material handling system available for uninterrupted batch processing
Technical Specifications
Model Unit JSSCD-110NC/X
Mainframe dimensions mm 2230*1800*1890
Bar & round pipe mm 20-100
Angle bar & square bar mm 20-85
Saw blade size mm φ360*2.6*φ40
Pin holes and hole diameters mm 4*φ11*90 φ40
Spindle motor power KW 11(4P)
Spindle speed rpm 20-140
Feeding servo motor power KW 2
Feed servo motor power KW 2
Material removal length at the front end mm 10-99
Single feeding length(repeatable) mm 10-800
Hydraulic drive motor power KW 2.25(4p)
Rated pressure of the hydraulic system mpa 5.5
Hydraulic oil capacity L 100
Additional Features
  • Cut off feed mode: AC servo motor & ball screw / 15° cutting-in
  • Main clamping method: Hydraulic type / one set each for horizontal and 15°
  • Saw blade debris removal device: Passive/active circular wire brush (optional)
  • Gear backlash compensation device: Hollow external rotating magnetic powder brake
  • Feeding drive mode: AC servo motor & ball screw
  • Feeding clamp method: Hydraulic type/Horizontal clamping
  • Self-lubrication oil system: Timed and quantitative forced oil supply

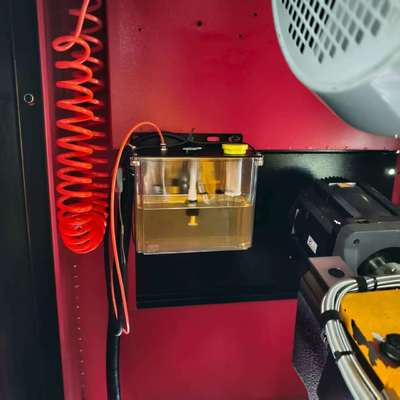

  • Micro-lubrication system for cutting: Quasi-dry intermittent oil supply
High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table 0 High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table 1 High Speed Circular Sawing Machine Stainless Steel 2230mm Circular Saw Table 2
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
Q3: What is your factory acceptance test method?
You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q4: What is your method of transaction?
We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q6: How about the payment term?
T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE, ISO international certification.
