5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine

5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine
5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine 5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine 5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine 5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine 5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine

Large Image :  5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Model Number: JSSCD-55NC/X
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Payment Terms: FOB
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine

Description
Name: JSSCD- 55NC/X CNC High Speed Circular Saw Machine Color: Red，Black
Condition: New Dimension: 1950x1700x1700
Use: Material Cutting Cuttable Material: Carbon Steel，Stainless Steel，Alloy Steel，Aluminum，Aluminum Alloy，Copper，Copper Alloy，Titanium Alloy，PA
Application: Automobile Manufacturing，Aerospace，Rail Transit，Mechanical Equipment，Hardware Tools，Ship Building，Building Material，Pipeline Engineering，Mold Manufacturing，Electronics Manufacturing Mechanical Control: Intelligent Control，Automation
Saw Type: Diagonal Cut Cutting Precision: ±0.05mm
Feeding Precision: ±0.1mm FAT: Sample Trial Cutting Verification
Safety Protection Devices: Emergency Braking，Anti-splash Shield Hydraulic Oil: Reusable
Cutting Debris Removal Device: Chain Plate Chip Conveyer
Highlight:

5.5KW CNC Circular Saw Machine

,

CNC Circular Saw Machine Hydraulic type

,

5.5mpa high speed circular saw machine

JSSCD-55NC/X CNC High Speed Circular Saw Machine for Metal Cutting(Angled-Push)
Modern metal fabrication demands efficiency and precision. This CNC high-speed circular saw meets this challenge head-on, emerging as an essential asset for profile cutting operations. Its defining feature - a scientifically optimized 15° tilted blade approach - delivers exceptional cut quality while safeguarding workpiece structural integrity.
Key Performance Attributes
  • Superior Cutting Accuracy: The unique blade angle strategically distributes cutting forces, minimizing stress on the material and yielding remarkably smooth, planar cut surfaces ideal for quality-critical applications.
  • Intelligent Process Management: Integrated CNC control module with straightforward touchscreen interface for setting and storing cutting parameters (speed, angle, feed), minimizing manual input and errors.
  • Unwavering Process Stability: Robust workpiece immobilization and drive system guarantees secure material fixation, preventing slippage or vibration during rapid cutting cycles.
  • Adaptable Material Handling: Processes diverse profiles (round tube, angle iron, rectangular sections) without time-consuming fixture adjustments, accommodating broad spectrum of material sizes and geometries.
Technical Specifications
Model Unit JSSCD-55NC/X
Mainframe dimensions mm 1950*1700*1700
Bar & round pipe mm 10-55
Angle bar & square bar mm 10-40
Saw blade size mm φ250*2.0*φ32
Pin holes and hole diameters mm 4*φ11*63 φ32
Spindle motor power KW 5.5(4P)
Spindle speed rpm 20-168
Feeding servo motor power KW 1.5
Feed servo motor power KW 1.5
Material removal length at the front end mm 10-99
Single feeding length(repeatable) mm 6-780
Hydraulic drive motor power KW 1.5(4p)
Rated pressure of the hydraulic system mpa 5.5
Hydraulic oil capacity L 60
Cut off feed mode AC servo motor & ball screw / 15° cutting-in
Main clamping method Hydraulic type / one set each for horizontal and 15°
Saw blade debris removal device Passive/active circular wire brush (optional)
Gear backlash compensation device Hollow external rotating magnetic powder brake
Feeding drive mode AC servo motor & ball screw
Feeding clamp method Hydraulic type/Horizontal clamping
Residual material length at the rear end mm 90&a(a represents the length less than one cut-off workpiece)
Self-lubrication oil system Timed and quantitative forced oil supply

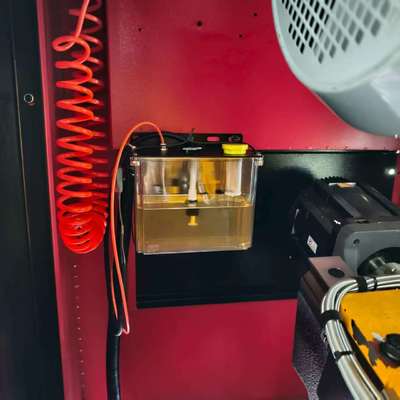

Micro-lubrication system for cutting Quasi-dry intermittent oil supply
Material separating device Pneumatic reciprocating
Long material receiving device Optional
Blade swing anti-vibration device Tungsten carbide parallel block
Production Advantages
  • Scalable Efficiency: Optional automated feed system enables extended batch cutting runs for substantial volume demands.
  • Resource Optimization: Balances high-volume throughput with precision, minimizing material waste, reducing labor dependency, and accelerating production timelines.
  • Sustainable Operation: Eco-conscious engineering principles integrated throughout the design reduce environmental impact.
5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine 0
5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine 1
5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine 2
5.5KW CNC Circular Saw Machine Hydraulic Type 5.5mpa High Speed Circular Saw Machine 3
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated team of technicians specializing in design, manufacturing, and sales.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting. We will provide detailed cutting data and a video of the machine operation for confirmation.
Q4: What is your method of transaction?
We adopt FOB (Free On Board) transaction terms.
Q5: How about your delivery time?
Typically 7-60 work days after order confirmation, depending on items and quantity ordered.
Q6: How about the payment term?
T/T 30% deposit, 70% balance before shipment. Other payment methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
