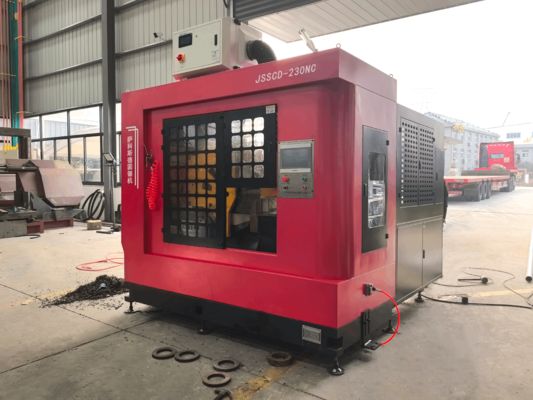

JSSCD-230NC/P CNC High Speed Industrial Circular Saw(Horizontal-Push)
Engineered for demanding production lines, this horizontal CNC circular saw delivers rapid, high-accuracy cutting of metal profiles. Its combination of intelligent automation, precision engineering, and robust construction establishes it as a vital asset in modern metalworking, recognized for unwavering reliability.
Adaptive Processing & Cutting Integrity
The machine excels in processing diverse sections including round tubes, angle iron, and square stock through its multi-directional hydraulic clamping system (horizontal/vertical). This adaptive fixturing drastically reduces setup changes, enhancing flexibility across varied material dimensions and shapes.
Cutting stability is ensured by an advanced horizontal plunge mechanism, driven by an AC servo motor and ball screw assembly. High-strength construction and precision engineering in the drive and clamping systems securely immobilize workpieces during high-velocity operation, eliminating vibration and guaranteeing consistent, repeatable cut accuracy.

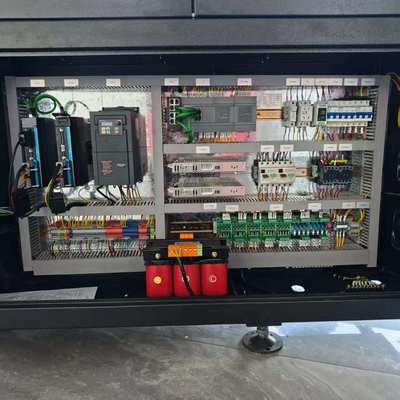

Intelligent Control & Streamlined Operation
Central to the system is a sophisticated CNC control module that enables meticulous adjustment of critical parameters like cutting speed and angle. Integration with a user-friendly Human-Machine Interface (HMI) simplifies programming, allowing operators to easily input cutting sequences and store numerous job configurations for fully automated processing.
Technical Specifications
| Model |
Unit |
JSSCD-230NC/P |
| Mainframe dimensions |
mm |
2600*2700*2300 |
| Bar & round pipe |
mm |
80-230 |
| Angle bar & square bar |
mm |
80-200 |
| Saw blade size |
mm |
φ630*3.4*φ80 |
| Pin holes and hole diameters |
mm |
4*φ24*150 φ80 |
| Spindle motor power |
KW |
30(6P) |
| Spindle speed |
rpm |
20-80 |
| Feed servo motor power |
KW |
7.5 |
| Feeding servo motor power |
KW |
3.5 |
| Material removal length at the front end |
mm |
20-99 |
| Single feeding length(repeatable) |
mm |
10-800 |
| Hydraulic drive motor power |
KW |
5.5 |
| Rated pressure of the hydraulic system |
mpa |
5.5 |
| Hydraulic oil capacity |
L |
150 |
Enhanced Automation & Sustained Performance

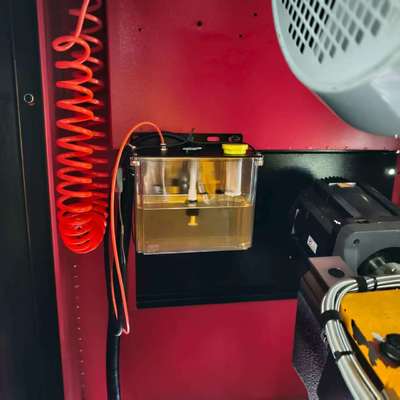

An optional high-capacity automatic feeder supports uninterrupted material supply, enabling seamless batch processing. Long-term precision is maintained by a gear backlash compensator (AC servo motor + ball screw). A robust hydraulic system energizes the clamping and specific drive functions, while critical component durability is extended via a self-lubrication system and tool micro-lubrication unit.

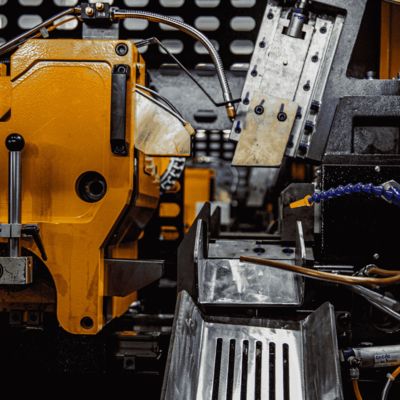

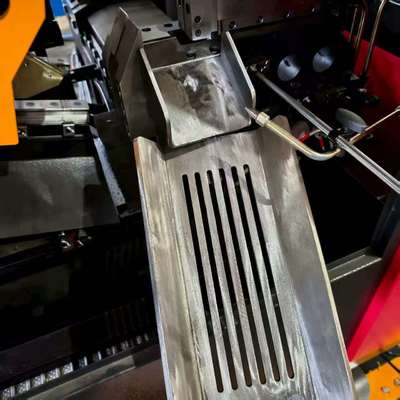

Product Images
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send us sample material to be cut, and we will perform a test cut using our machine. We will provide detailed cutting data and a video of the machine cutting operation for your confirmation.
Q4: What is your method of transaction?
We adopt the FOB (Free On Board) transaction method.
Q5: How about your delivery time?
Generally, it takes 7-60 work days after receiving your order, depending on the items and quantity.
Q6: How about the payment term?
T/T 30% deposit, 70% of balance paid before shipment. For other payment methods, please contact our sales team.
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
