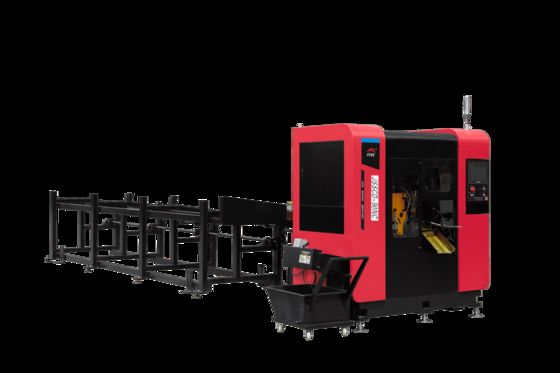

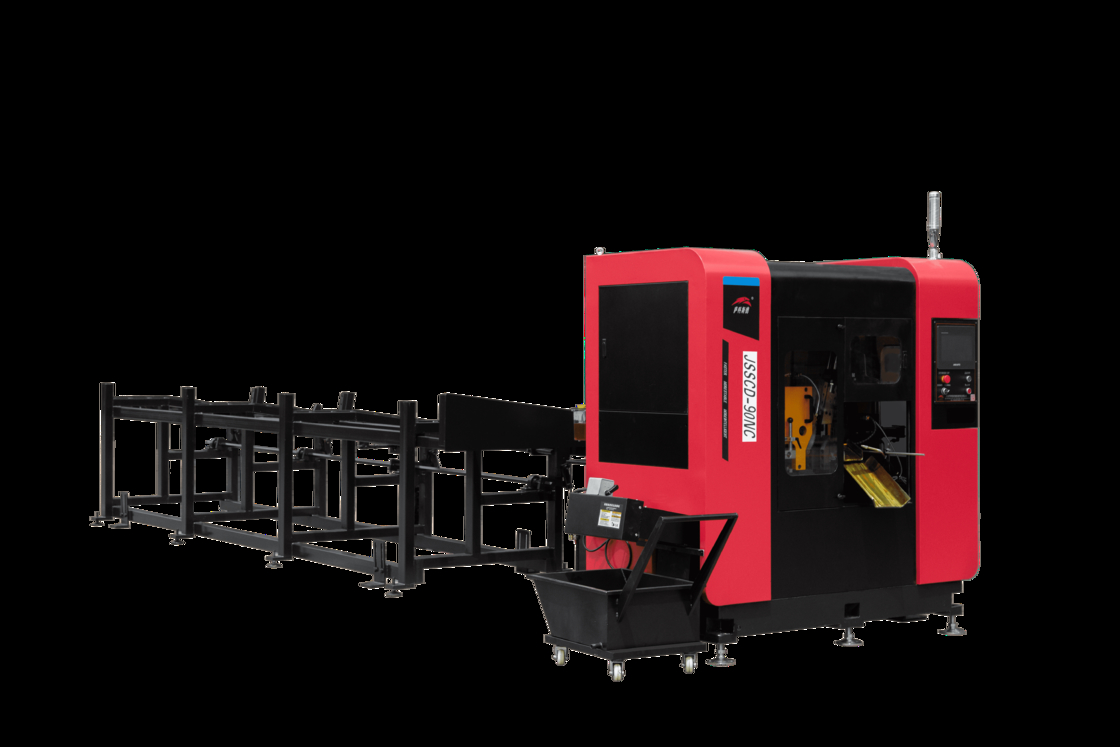

JSSCD-90NC/P CNC High Speed Circular Saw Machine (Horizontal-Push)
Modern metal fabrication demands solutions that reconcile intensive output requirements with stringent dimensional accuracy. This CNC-controlled high-speed horizontal circular saw addresses this critical challenge head-on. It integrates rapid cutting performance, advanced control systems, unwavering precision, and sustainable operation, establishing itself as essential infrastructure for robust, consistent industrial metal processing.
Foundations of Engineering Integrity
The machine's defining achievement is its sustained dimensional fidelity across prolonged production runs. This capability is engineered through several interconnected systems:
- Precision Horizontal Cutting Mechanics: An AC servo motor, coupled with ball screw drive technology, delivers exceptionally smooth and controllable feed motion.
- Optimized Workpiece Securement: A multi-axis hydraulic clamping fixture ensures absolute material immobilization, preventing slippage during demanding cuts while facilitating swift adjustments for diverse material sizes.
- Enduring Accuracy Systems: Features include minimized backlash in the servo/ball screw drive train, consistent hydraulic clamping pressure, and an integrated lubrication system with pneumatic Minimal Quantity Lubrication (MQL) for blade cooling.
Technical Specifications
| Model |
Unit |
JSSCD-90NC/P |
| Mainframe dimensions |
mm |
2250*1790*1760 |
| Bar & round pipe |
mm |
15-90 |
| Angle bar & square bar |
mm |
15-70 |
| Saw blade size |
mm |
φ315*2.25*φ32 |
| Pin holes and hole diameters |
mm |
4*φ11*63 φ32 |
| Spindle motor power |
KW |
11(4P) |
| Spindle speed |
rpm |
20-168 |
| Feed servo motor power |
KW |
1.5 |
| Material removal length at the front end |
mm |
10-99 |
| Single feeding length (repeatable) |
mm |
6-860 |
| Hydraulic drive motor power |
KW |
1.5(4P) |
| Rated pressure of the hydraulic system |
mpa |
5.5 |
| Hydraulic oil capacity |
L |
70 |
Elevating Throughput with Intelligent Automation
Operations can integrate an optional HIGH-CAPACITY AUTOMATED FEEDING SYSTEM for continuous, automated material supply synchronized with horizontal cutting strokes, enabling extended unattended batch processing and increased throughput.
Intuitive Control for Streamlined Operation
The PRECISION CNC CONTROL SYSTEM governs critical parameters like cutting speed and angular positioning through an intuitive Human-Machine Interface (HMI), allowing effortless input of specifications and storage of multiple cutting programs.
Product Images
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting; we'll provide detailed cutting data and a video of the operation.
Q4: What is your method of transaction?
We use FOB (Free On Board) transaction terms.
Q5: How about your delivery time?
Typically 7-60 work days after order confirmation, depending on items and quantity.
Q6: How about the payment term?
T/T 30% deposit, 70% balance before shipment (other methods available through sales team).
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
