JSSCD-80NC/P High Speed Automatic Circular Saw(Horizontal-Push)
Modern metal fabrication demands solutions that reconcile intensive output requirements with stringent dimensional accuracy. This CNC-controlled high-speed horizontal circular saw addresses this critical challenge head-on. It integrates rapid cutting performance, advanced control systems, unwavering precision, and sustainable operation, establishing itself as essential infrastructure for robust, consistent industrial metal processing.
Foundations of Engineering Integrity
The machine's defining achievement is its sustained dimensional fidelity across prolonged production runs. This capability is engineered through several interconnected systems:
- Precision Horizontal Cutting Mechanics: An AC servo motor, coupled with ball screw drive technology, delivers exceptionally smooth and controllable feed motion.

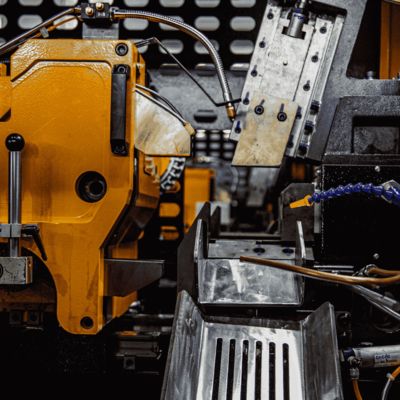

- Optimized Workpiece Securement: A multi-axis hydraulic clamping fixture ensures absolute material immobilization, preventing slippage even during demanding cuts while facilitating swift adjustments for diverse material sizes.

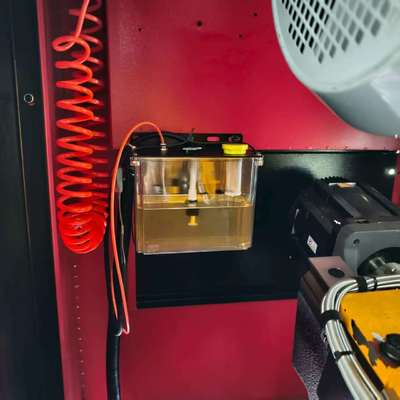

- Enduring Accuracy Systems: Features minimized backlash in the servo/ball screw drive train, consistent hydraulic clamping pressure, and an integrated lubrication system with smart timed central lubrication and pneumatic MQL unit for blade cooling.
Intuitive Control for Streamlined Operation
The dedicated PRECISION CNC CONTROL SYSTEM precisely governs critical parameters like cutting speed and angular positioning. The intuitive HMI allows effortless input of specifications and storage of multiple cutting programs, significantly reducing operator effort and minimizing manual setting errors.
Technical Specifications
| Model |
Unit |
JSSCD-80NC/P |
| Mainframe dimensions |
mm |
2250*1790*1760 |
| Bar & round pipe |
mm |
15-80 |
| Angle bar & square bar |
mm |
15-68 |
| Saw blade size |
mm |
φ300*2.0*φ32 |
| Spindle motor power |
KW |
7.5(4P) |
| Spindle speed |
rpm |
20-168 |
| Feed servo motor power |
KW |
1.5 |
| Hydraulic drive motor power |
KW |
1.5(4P) |
| Rated pressure of the hydraulic system |
mpa |
5.5 |
| Hydraulic oil capacity |
L |
70 |
Elevating Throughput with Intelligent Automation

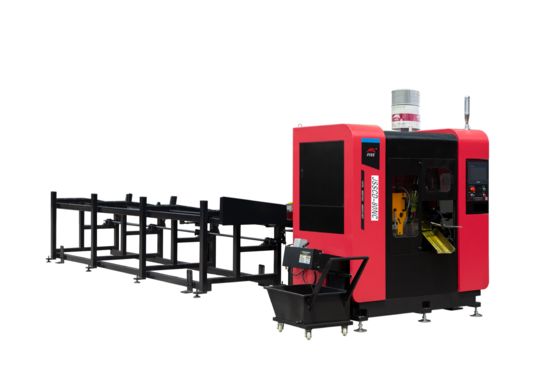

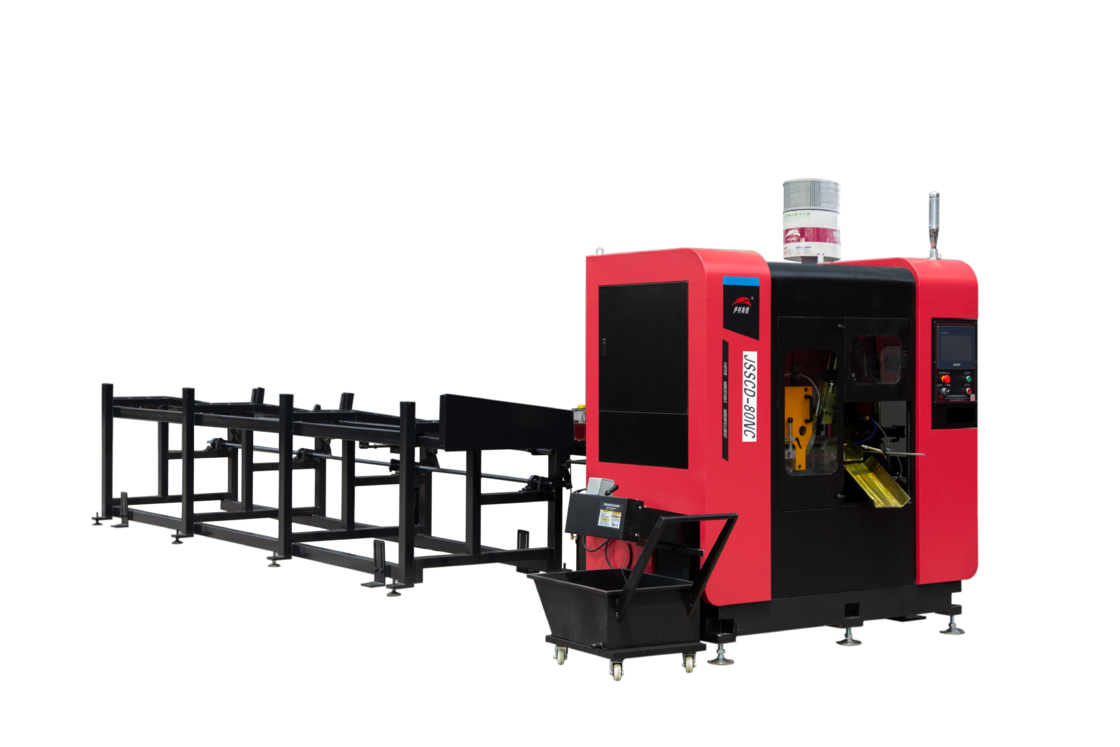

The optional HIGH-CAPACITY AUTOMATED FEEDING SYSTEM enables continuous, automated material supply synchronized with the horizontal cutting stroke, allowing extended unattended batch processing and dramatically increased throughput for large-scale production.
Product Images
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders with a 30,000 square meter factory and dedicated technical team.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China, approximately 1.5 hours from Shanghai Hongqiao station.
Q3: What is your factory acceptance test method?
You can send sample material for test cutting; we'll provide detailed cutting data and a video of the operation.
Q4: What is your method of transaction?
We typically use FOB (Free On Board) transactions.
Q5: How about your delivery time?
Delivery typically takes 7-60 work days after order confirmation, depending on items and quantity.
Q6: What are your payment terms?
Standard terms are 30% deposit by T/T, with 70% balance paid before shipment. Other methods available upon request.
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE and ISO international certifications.
