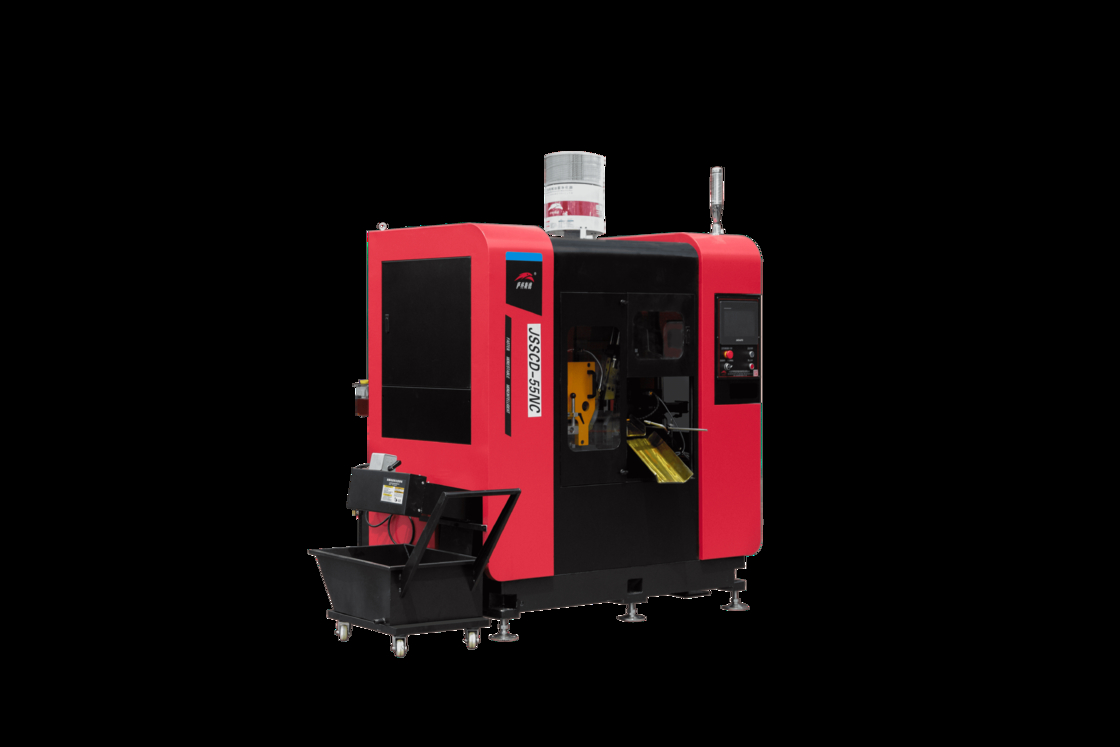

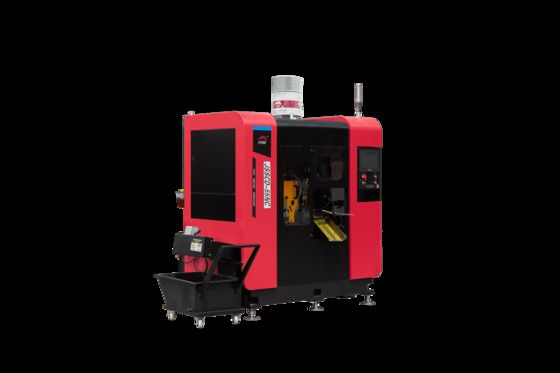

JSSCD-55NC/P CNC High Speed Circular Saw Machine (Horizontal-Push)
Meeting the rigorous demands of modern metalworking requires high-efficiency, high-precision cutting solutions, especially for horizontal operations. This CNC high-speed circular sawing machine delivers precisely that. It seamlessly combines rapid cutting performance, automated precision, and eco-friendly operation, establishing itself as a cornerstone of reliable and productive metal processing lines.
Versatility Meets Simplified Operation
Say goodbye to constant fixture swaps. This saw handles a diverse range of profiles—round tubes, angle steels, square tubes, and more—with remarkable flexibility. It effortlessly adapts to varying sizes and shapes of metal stock. Central to its operation is a sophisticated intelligent control module, the true "brain" of the machine. It meticulously governs cutting speed, angle, and other critical parameters, ensuring consistent, high-precision results meeting exact specifications every time.
Robust Performance & Intelligent Control

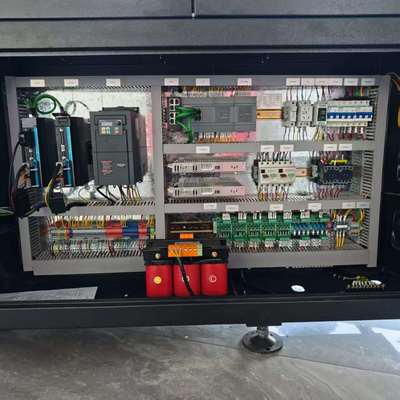

Stability is paramount during high-speed cutting. The JSSCD-55NC/P incorporates a high-strength transmission and clamping system, featuring an accurate structural design. This guarantees the workpiece is held immovably secure, preventing any displacement and guaranteeing dependable, vibration-free operation. Complementing this is a high-precision CNC control system with an intuitive human-machine interface (HMI). Programming is simplified: operators configure cutting parameters through the user-friendly interface and can store multiple programs, paving the way for seamless, fully automated production runs. This drastically cuts manual intervention and minimizes human error.
Boosting Productivity & Sustainability
For enhanced throughput, an optional automatic feeding system is available, enabling continuous, unattended batch cutting. This capability allows the machine to operate non-stop, significantly elevating overall productivity to meet large-scale demands. The synergy of intelligent CNC control and high-speed cutting technology delivers tangible business advantages:
- Optimized Material Use: Improved utilization reduces costly waste.
- Enhanced Efficiency: Faster cutting speeds and automation shorten production cycles.
- Lower Operational Costs: Reduced labor requirements and minimized errors translate to cost savings.
Specifications
| Model |
Unit |
JSSCD-55NC/P |
| Mainframe dimensions |
mm |
1950*1700*1700 |
| Bar & round pipe |
mm |
10-55 |
| Angle bar & square bar |
mm |
10-40 |
| Saw blade size |
mm |
φ250*2.0*φ32 |
| Pin holes and hole diameters |
mm |
4*φ11*63 φ32 |
| Spindle motor power |
KW |
5.5(4P) |
| Spindle speed |
rpm |
20-168 |
| Feed servo motor power |
KW |
1.5 |
| Feeding servo motor power |
KW |
1.5 |
| Material removal length at the front end |
mm |
10-99 |
| Single feeding length(repeatable) |
mm |
6-780 |
| Hydraulic drive motor power |
KW |
1.5(4p) |
| Rated pressure of the hydraulic system |
mpa |
5.5 |
| Hydraulic oil capacity |
L |
60 |
| Cut off feed mode |
AC servo motor & ball screw / horizontal entry |
| Main clamping method |
Hydraulic type / one set each for horizontal and 15° |
| Saw blade debris removal device |
Passive/active circular wire brush (optional) |
| Gear backlash compensation device |
Hollow external rotating magnetic powder brake |
| Feeding drive mode |
AC servo motor & ball screw |
| Feeding clamp method |
Hydraulic type/Horizontal clamping |
| Residual material length at the rear end |
mm |
90&a(a represents the length less than one cut-off workpiece) |
| Self-lubrication oil system |
Timed and quantitative forced oil supply |

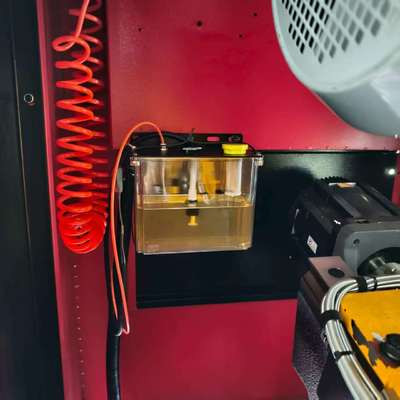

| Micro-lubrication system for cutting |
Quasi-dry intermittent oil supply |
| Material separating device |
Pneumatic reciprocating |
| Long material receiving device |
Optional |
| Blade swing anti-vibration device |
Tungsten carbide parallel block |
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2: Where is your factory located?
Our factory is located in Nantong City, Jiangsu Province, China. It will takes about 1.5 hours from Shanghai Hongqiao station to our city.
Q3: What is your factory acceptance test method?
You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q4: What is your method of transaction?
We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
Generally, it will take 7-60 work days after receiving your order. The specific delivery time depends on the items and the quantity of your order.
Q6: How about the payment term?
T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7: Does the band saw blade have any international certifications?
Yes, we have obtained CE, ISO international certification.
