High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines

High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines
High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines

Large Image :  High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines

Product Details:
Place of Origin: China
Brand Name: JSSCD
Certification: HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S
Model Number: JSSCD-150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: depending on the machine model
Delivery Time: 7-60 work days
Payment Terms: FOB
Supply Ability: 500 Sets Per Year
Contact Now Chat Now

High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines

Description

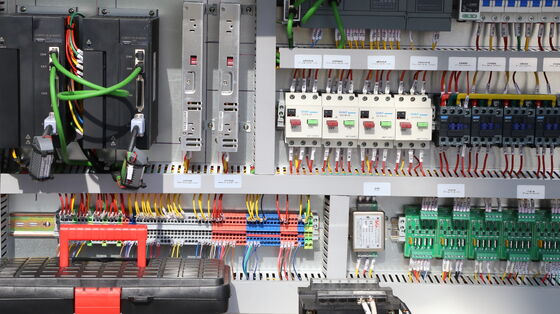

Model: JSSCD-150 Control System: PLC + Servo Control + 5G IoT
Cutting Feed Method: Horizontal Feed Main Motor Power: 18.5 KW (Servo Spindle)
Saw Blade Size: φ460 X 2.7 Mm Cutting Capacity (Round): φ20–150 Mm
Cutting Capacity (Square): 30–110 Mm Feeding Accuracy: ±0.05 Mm
Highlight:

High-Speed CNC circular saw machine

,

Medium-diameter bar sawing machine

,

20-150 mm CNC sawing machine

High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines

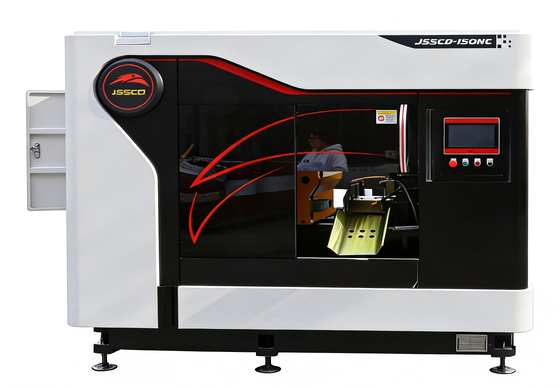

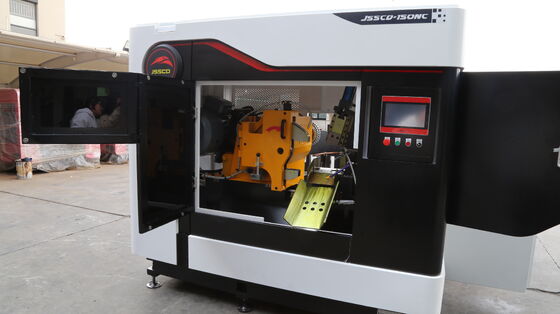

The JSSCD-150C High-Speed Intelligent Circular Sawing Machine is a specialized cutting solution for medium-diameter round bar mass production lines. Designed as a complete production system integrating automatic loading, precision cutting, and automated output handling, this machine is ideal for manufacturers requiring high-volume, continuous operation with minimal manual intervention.
Built with HT300 high-quality cast iron base and SKF precision bearings, the JSSCD-150C delivers exceptional stability, cutting accuracy, and long-term reliability for 24/7 production environments.
Key Features

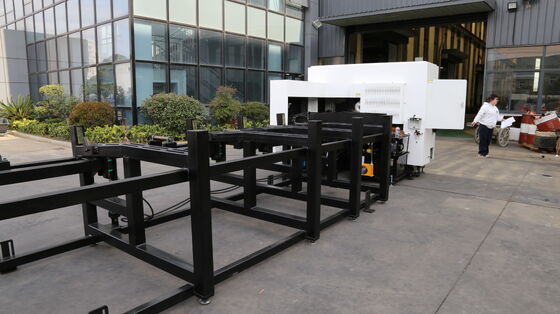

  • Complete Production Line Integration: Includes material rack, feeding system, main saw unit, roller conveyor, and bar lifting mechanism for end-to-end automation
  • HT300 Cast Iron Base: Superior rigidity and vibration dampening compared to welded steel structures
  • 18.5 kW Servo Spindle Motor: High-torque direct drive for efficient cutting of medium-diameter bars
  • Horizontal Feed Design: Servo motor + precision ball screw for stable and powerful cutting

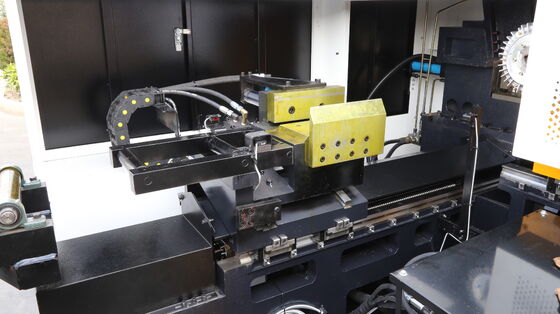

  • Dual Clamping System: Horizontal + vertical hydraulic clamping for secure workpiece holding
Technical Specifications
Specification Value
Cutting Vertical Accuracy ≤ ±0.25 mm / 100 mm
Cutting Length Accuracy ≤ ±0.20 mm
Kerf Loss ≤ 2.7 mm
Material Rack Capacity 3000-7500 mm

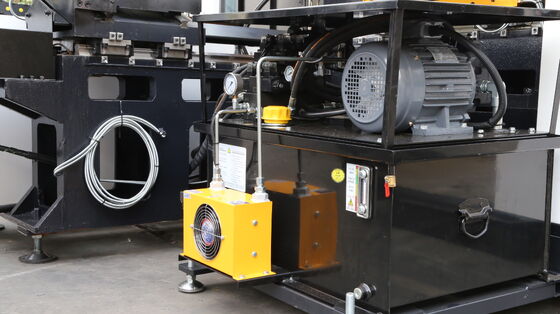

Hydraulic System Pressure 6 MPa
Hydraulic Tank Capacity 100 L
Cooling Method Spray Lubrication Cooling (MUCKY)
Compressed Air Requirement 4-6 bar
High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines 0 High-Speed Sawing Machine 20-150 mm For Medium-Diameter Bar Processing Lines 1
Industry Applications
Industry Application
Automotive Manufacturing Axle shafts, transmission components, steering parts
Machinery & Equipment Hydraulic cylinder rods, piston rods, precision shafts
Mold & Die Mold base materials, guide pillars, ejector pins
Bearing Industry Bearing rings, races, roller elements
Oil & Gas Drill pipe components, valve stems, couplings
Construction Machinery Hydraulic rod ends, pins, bushings
Wind Power Tower flange bolts, pitch system components
Rail Transit Axle components, suspension parts
Frequently Asked Questions
Q1: What materials can the JSSCD-150C cut?
A: It is designed for carbon steel (20#, 45#), alloy steel (CR15), and other medium-hardness round bars with diameter range φ20-150 mm.
Q2: What is the maximum finished part length?
A: With a single feeding stroke of 2000 mm, the machine can produce finished parts up to 2000 mm in one pass without multiple feeds.
Q3: Can this machine be integrated into an existing production line?
A: Yes, the JSSCD-150C is designed as a complete production system with input/output conveyors, making it easy to integrate with upstream and downstream processes such as induction heating or forging.
Q4: What is the remnant length?
A: The tail remnant is ≤65 mm plus cutting length, ensuring efficient material utilization.
Q5: Do you provide remote monitoring capabilities?
A: Yes, the machine features 5G IoT connectivity, allowing remote monitoring, data collection, and control via mobile phone or computer.
Q6: What after-sales support do you offer?
A: We provide installation, operator training, 12-month warranty, 24-hour response for inquiries, and 48-hour on-site service for emergencies.
